Basic Perpetual License — $399 Floor-plan Compiler (Script 1 only) Floor Compiler + Geometry Builder (PlanVec JSON Schema v5.0)

Wickerson Studios Floor-plan Compiler + Geometry Builder (PlanVec JSON Schema v5.0)

Basic Perpetual License — $399 Floor-plan Compiler (Script 1 only)

The Basic Perpetual License gives individual designers and students access to Wickerson Studios’ Floor Compiler—a powerful image-to-data engine that converts 2D floor plans into a strict, machine-readable PlanVec JSON (Schema v5.0)

Upload a floor plan image and receive a normalized, confidence-rated vector description of walls, doors, windows, spaces, and adjacency—ready for automation, research, or custom CAD/BIM pipelines.

What’s included

• Script 1: Floor Compiler (STEP_FP_06z)
• Strict PlanVec JSON Schema v1.0 output
• Doors, windows, walls, corners, labels, spaces, and adjacency
• Multi-pass refinement for improved opening detection
• Deterministic, cache-aware results
• Commercial and educational use (single user)

What’s not included

• Rhino / Grasshopper geometry generation
• Wall extrusions, rooms, or boolean operations
• Script 2 (Geometry Builder)

Best for

• Students and educators
• Computational designers
• Developers building custom CAD/BIM tools
• Anyone who needs clean, structured floor plan data without automatic geometry

Downloadable README

I’ve generated a license-specific README you can bundle with the download or link from your product page:

Wickerson Studios — Basic Perpetual License

Floor Compiler (Script 1)

PlanVec JSON Schema v1.0

LICENSE SUMMARY

Product: Floor Compiler (STEP_FP_06z)

License Type: Basic Perpetual

Price: $299 USD

Audience: Individual designers, students, researchers

Usage: Commercial and educational use permitted by the licensed individual

Seat Type: Single-user, node-locked

Includes: Script 1 only (PlanVec JSON output)

Excludes: Geometry Builder (Script 2), Rhino geometry generation

─────

WHAT THIS TOOL DOES

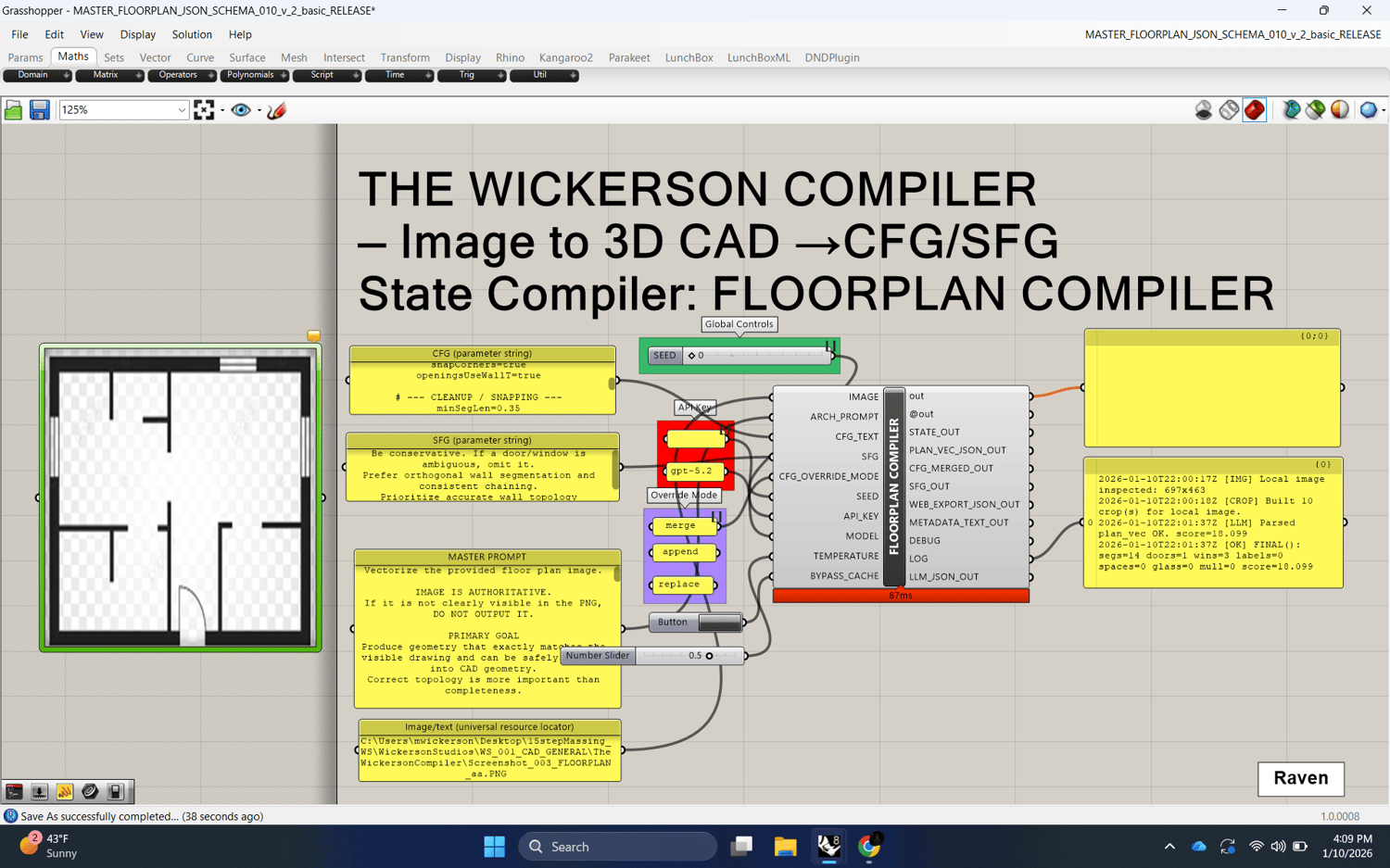

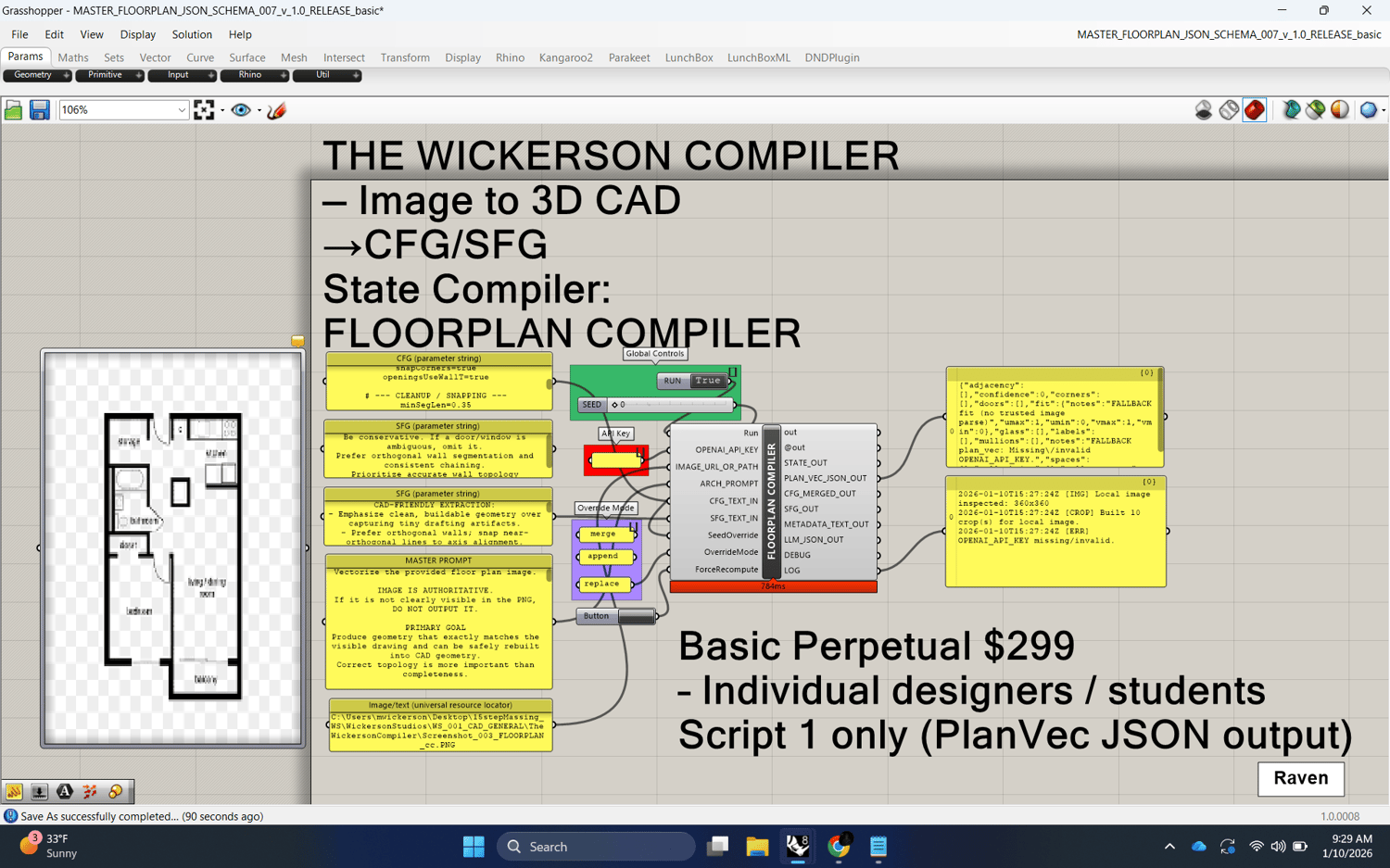

The Floor Compiler converts a 2D floor plan image into a strict, machine-readable

PlanVec JSON representation using JSON Schema v1.0.

Given a PNG/JPG or HTTPS image of a floor plan, the tool analyzes the drawing and

outputs structured vector data describing:

• Walls (segments + chains)

• Doors and windows (with confidence scores)

• Corners and topology

• Labels and inferred spaces

• Adjacency relationships

• Global and per-object confidence

• Modeling requirements and defaults

All geometry is expressed in normalized FULL-IMAGE UV coordinates [0..1],

making the output resolution-independent and ideal for downstream pipelines,

custom parsers, or CAD/BIM automation.

─────

WHAT YOU RECEIVE (OUTPUTS)

• PLAN_VEC_JSON_OUT

 A strict PlanVec JSON object conforming to Schema v1.0.

• STATE_OUT

 EngineState JSON containing:

 - merged configuration (CFG)

 - modeling requirements

 - image metadata

 - confidence scores

 - logs and diagnostics

• CFG_MERGED_OUT / SFG_OUT

 Final configuration values and user notes.

• LLM_JSON_OUT

 Raw schema-conformant model output.

• LOG / DEBUG

 Human-readable execution diagnostics.

No Rhino or Grasshopper geometry is generated in this license tier.

─────

CORE FEATURES

• Strict JSON Schema enforcement

 Ensures consistent keys, types, and structure for automation-safe output.

• Multi-image analysis (local files)

 Optional zoom-crops improve detection of small doors and windows.

• Multi-pass refinement

 Automatically re-runs detection if openings appear missing.

• Deterministic & cache-aware

 Identical inputs yield identical outputs and avoid repeat API calls.

• Confidence-driven output

 Ambiguous elements are included with lower confidence instead of omitted.

─────

PLANVEC JSON (v1.0) — USE CASES

This license is ideal if you want to:

• Build your own CAD/BIM generator

• Feed structured floor plan data into AI or rule-based systems

• Archive drawings as normalized vector data

• Analyze spatial topology programmatically

• Teach or research plan understanding workflows

─────

LIMITATIONS OF BASIC LICENSE

• No Rhino/Grasshopper geometry generation

• No automatic wall extrusion, openings, or rooms

• No adjacency curve visualization

• No batch or multi-seat licensing

Upgrade to the Standard or Professional license to enable full geometry output

and advanced modeling workflows.

─────

SYSTEM REQUIREMENTS

• Grasshopper (Rhino 7+ recommended)

• Internet connection (for image analysis)

• Valid OpenAI API key

• PNG/JPG image or HTTPS image URL

─────

SUPPORT & UPDATES

• Perpetual use of Script 1

• Includes critical bug fixes

• Major feature upgrades not included

• Email support (best-effort)

─────

IMPORTANT NOTES

• All coordinates are normalized UVs in FULL IMAGE space.

• Units, wall thickness, and opening defaults are provided as metadata only.

• The image is always treated as the source of truth.

Wickerson Studios

www.wickersonstudios.com
