BridgeDesigner MinCore

Parametric, Algorithm-Driven Bridge Modeling from Clean DXF Inputs

BridgeDesigner MinCore is an advanced 3D bridge modeling system developed by Wickerson Studios that transforms pure, annotation-free DXF plan / elevation / section drawings into a fully registered, structurally coherent 3D CAD bridge assembly.

Unlike conventional BIM or parametric tools that rely on predefined templates or manual modeling, BridgeDesigner MinCore operates as a geometry-first, algorithmic engine: it reads vector entities directly from DXF layers and reconstructs the bridge using mathematics, physics-inspired curves, and optimization algorithms.

What Makes It Different

DXF-Native, Geometry-Truth Pipeline

• Works directly from Model Space DXF vectors (no blocks, no annotations, no envelopes).
• Arches, cables, hangers, deck edges, ribs, and sections are treated as ground truth geometry, not inferred approximations.
• Plan, elevation, and section drawings are merged, registered, and reconciled automatically.

Fully Algorithmic 3D Assembly

The system reconstructs bridges using a layered algorithmic approach:

Generative & Procedural Algorithms

• Multi-harmonic trigonometric polynomial fields drive deck alignment, curvature, and width modulation.
• Arches and cables are refined using higher-order exponent trig functions and physics-inspired profiles (catenary / parabola hybrids).

Rule-Based & Stochastic Systems

• Design variation is procedurally generated but deterministic (seeded via cryptographic hashing).
• The same inputs always produce the same bridge, while still allowing rich geometric diversity.

Dynamic Programming

• Hanger stations are selected from dense candidate sets using optimal substructure logic:
• Enforces minimum/maximum spacing
• Prioritizes high-demand zones (midspan, curvature peaks)
• Avoids clustering and degeneracy

Graph Algorithms

• Stay cables are modeled as graphs connecting pylons and deck anchors.
• Uses spanning tree logic, fan ordering, and connectivity constraints to eliminate braiding and crossings.
• Ensures clean, readable structural logic in plan, elevation, and 3D.

Constraint Satisfaction & Optimization

• Automatic correction of:
• Inverted arches or cables
• Misaligned plan/elevation geometry
• Braided stay systems
• Coplanar or incorrectly oriented bracing
• Bracing, hangers, and stays are oriented using structural logic, not drawing coincidence.

Structural Intelligence Built In

• Arches are unified, flipped, and refined to ensure consistent vertical orientation and span logic.
• Cables and stays converge correctly at pylons, with monotonic fan ordering and physics-based sag.
• Hangers merge plan and elevation definitions into a single coherent 3D system.
• Bracing is generated as true 3D structural framing (e.g. under-deck X-bracing), never flattened onto surfaces.
• Deck, girders, piers, abutments, and bearings are assembled as a coordinated structural system.

Output

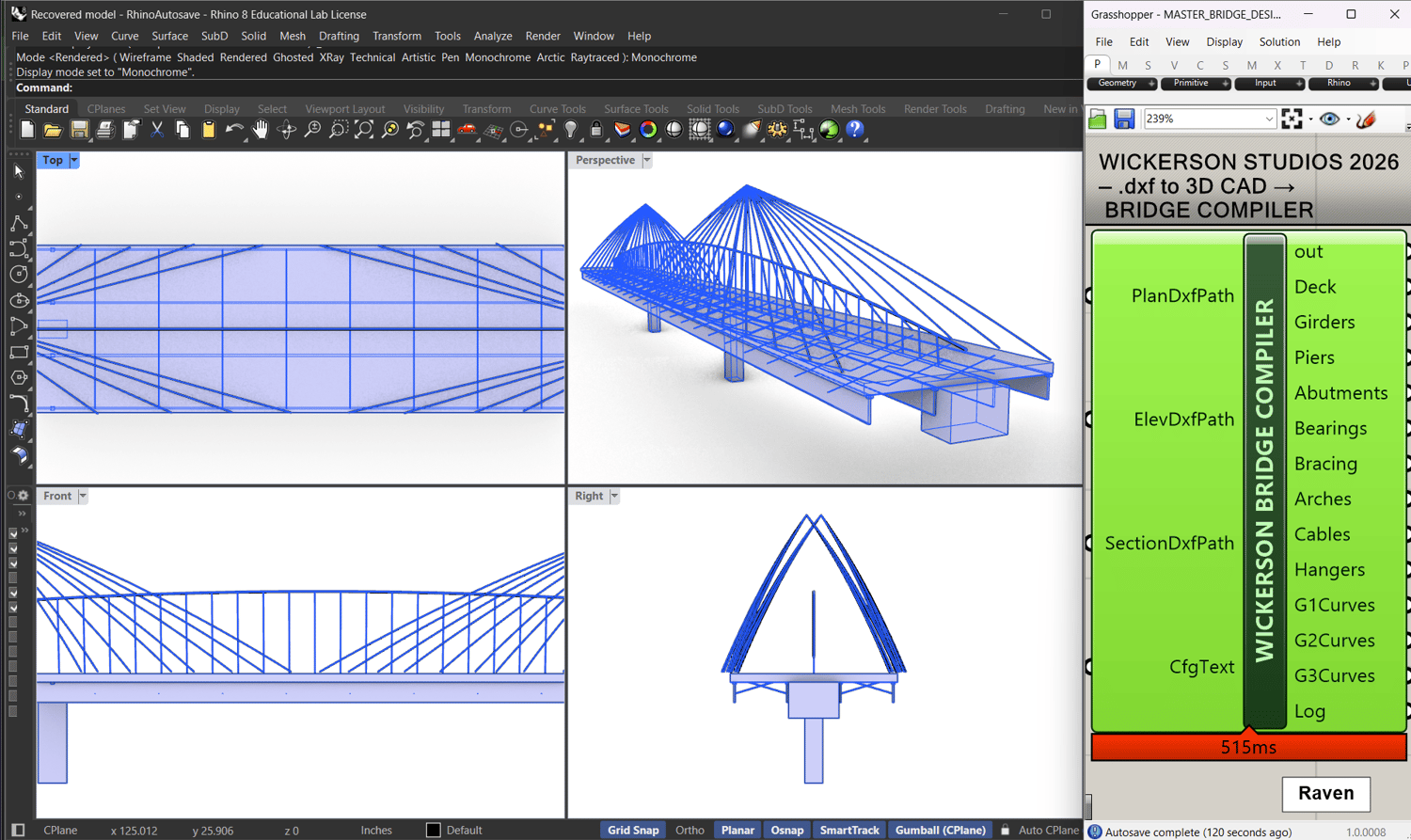

• Clean, editable Rhino / Grasshopper geometry
• Optional export of new, enhanced DXF plan / elevation / section sets
• Geometry organized by semantic layers (ARCH_RIB, MAIN_CABLE, HANGER_ARCH, STAY_CABLE, RIB_BRACE, etc.)
• No “misc” geometry, no orphaned curves — everything has intent

Who It’s For

• Bridge designers and architects exploring non-standard structural forms
• Engineers wanting geometry-driven conceptual models
• Computational designers working with DXF-based pipelines
• Studios seeking a repeatable, algorithmic bridge generator rather than manual BIM assembly

Philosophy

BridgeDesigner MinCore treats bridges not as static templates, but as systems — governed by geometry, structure, and mathematics. Every line in the drawing has meaning, and every algorithm enforces coherence between plan, elevation, section, and 3D reality.
