Wickerson Studios — vCAD4.x “LLM-Driven Architectural Massing” Script Series (R&D Services 2026)

This Grasshopper C# STEP_00 → STEP_10 pipeline is a production-minded research system for generating high-LOD architectural massings and 3D CAD geometry assemblies from compact text control strings (cfg) plus narrative intent channels (sfg)—optionally driven by an OpenAI key for rapid design iteration and style steering.

At its core, the series separates design intent (cfg/sfg + prompt) from geometry execution (floorplates → massing → façade → perforation → packaging), so you can iterate quickly without breaking downstream geometry.

What this system does

1) Converts “design intent” into deterministic parametric controls

• cfg (configuration) stores canonical numeric + discrete knobs that downstream steps always read (height, levels, siteW/siteD, taper, twist, setbacks, panelization counts, perforation density, performance caps, etc.).
• sfg (structured focus guidance) stores multi-channel “intent text” like:
• reference: (architectural precedent / source concept)
• program: (use + occupancy)
• style: (material + language)
• massing: (tower/podium logic)
• facade: (panel/diagrid/perf logic)
• math: (Fourier wobble / twist / taper)
• The system normalizes synonyms and ensures defaults so every downstream STEP always has valid inputs.

2) Generates buildable 3D architectural assemblies at high LOD

Downstream steps produce:

• Floorplates, cores, plates, spines
• Lofted massing Breps (taper/twist/setbacks/wobble)
• Panel + mullion façade systems
• Perforation cutters and optional boolean cutting (performance-safe)
• Final packaging outputs (layer-tagged Breps/Curves) for baking/export

3) Stays “solver-safe” in Grasshopper

The series includes performance controls and “safe” strategies to prevent:

• runaway boolean operations
• exploding panel counts
• document update re-solve loops (especially in bake/export steps)

STEP-by-STEP overview (the pipeline)

STEP_00 — Init / State / Defaults

• Creates the EngineState JSON that travels through the whole pipeline.
• Parses cfg + sfg, normalizes keys, applies defaults, derives selections (archetype/reference).
• Output: STATE_OUT + readable debug logs + effective cfg.

Why it matters: every later step relies on canonical keys coming out of STEP_00 so the system behaves consistently even with messy user input.

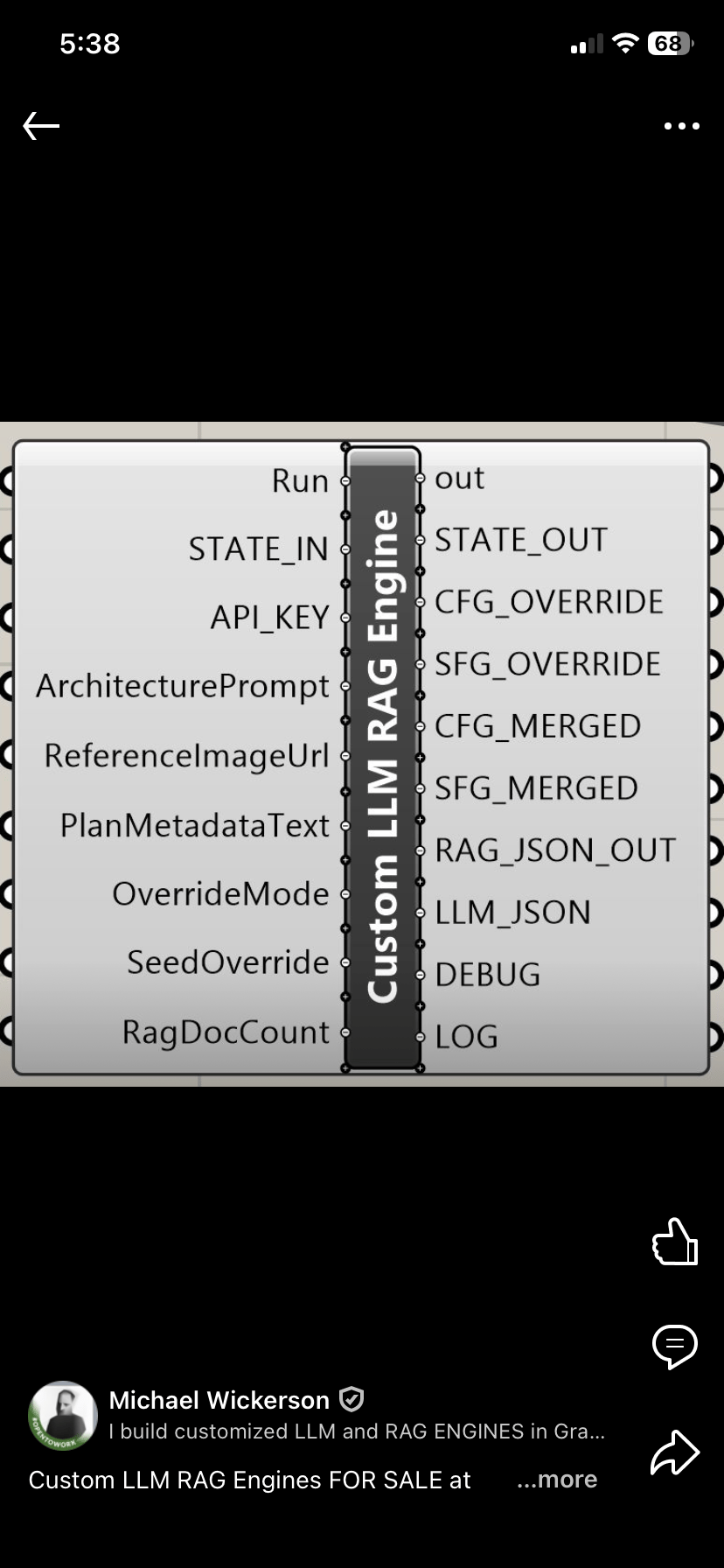

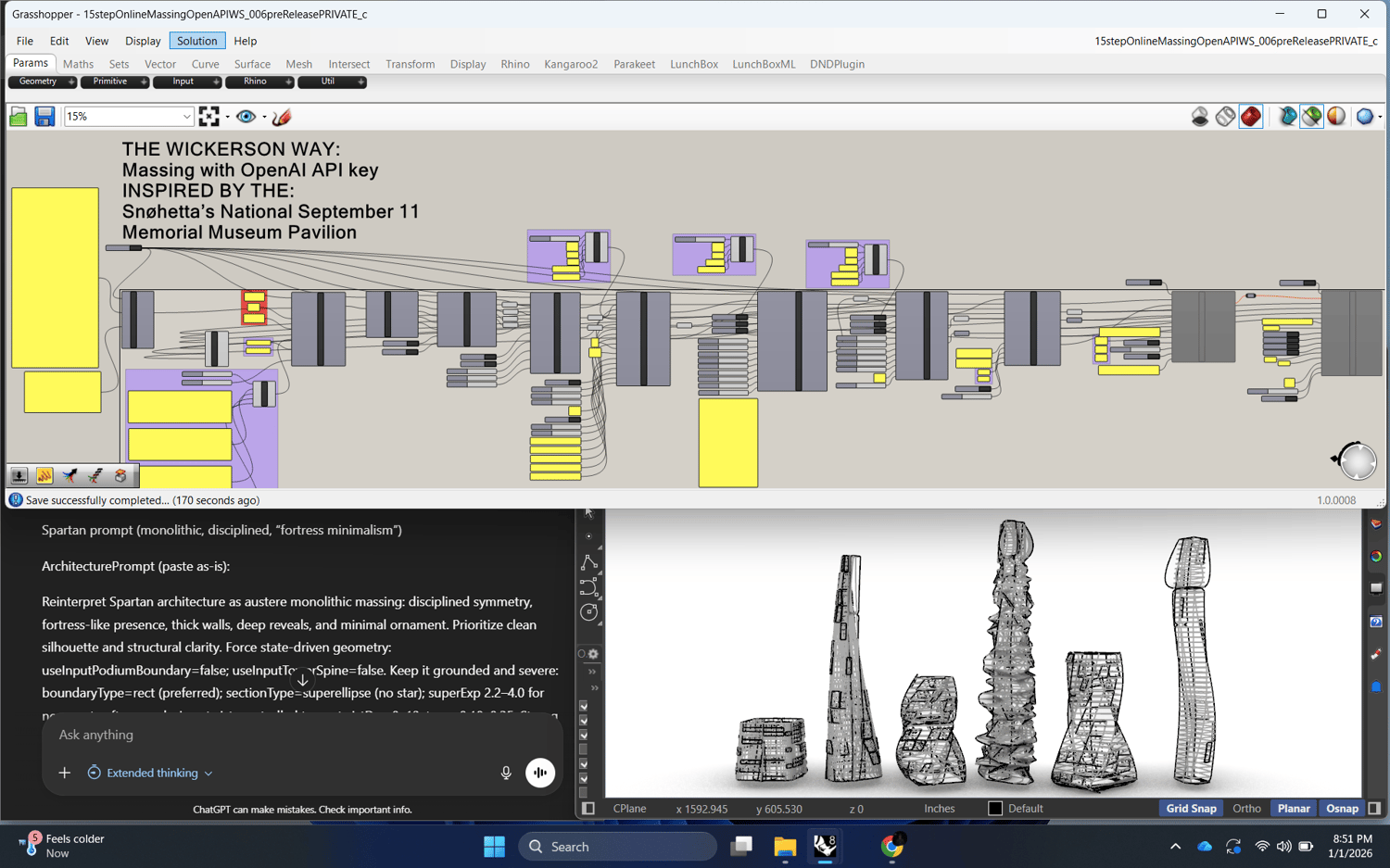

STEP_01b — LLM / Prompt → cfg+sfg Generator

• Takes an “ArchitecturePrompt” (often derived from a reference image or precedent) and generates deterministic cfg overrides so the prompt always visibly changes geometry.
• Merges overrides into state (append/replace modes).
• Output: updated STATE_OUT, CFG_MERGED, SFG_MERGED, plus an explicit CFG_OVERRIDE.

Why it matters: this is the “creative steering wheel”—fast iteration across distinct architectural families (twin towers, podium+tower, courtyard ring, shards/atrium, stepped ziggurat, etc.).

STEP_02 — Floorplates

• Reads canonical cfg (siteW/siteD/levels/floorH/sectionType/rotation…)
• Generates floorplate curves (and optional podium logic).
• Output: plate curves, level planes, basic structural guides.

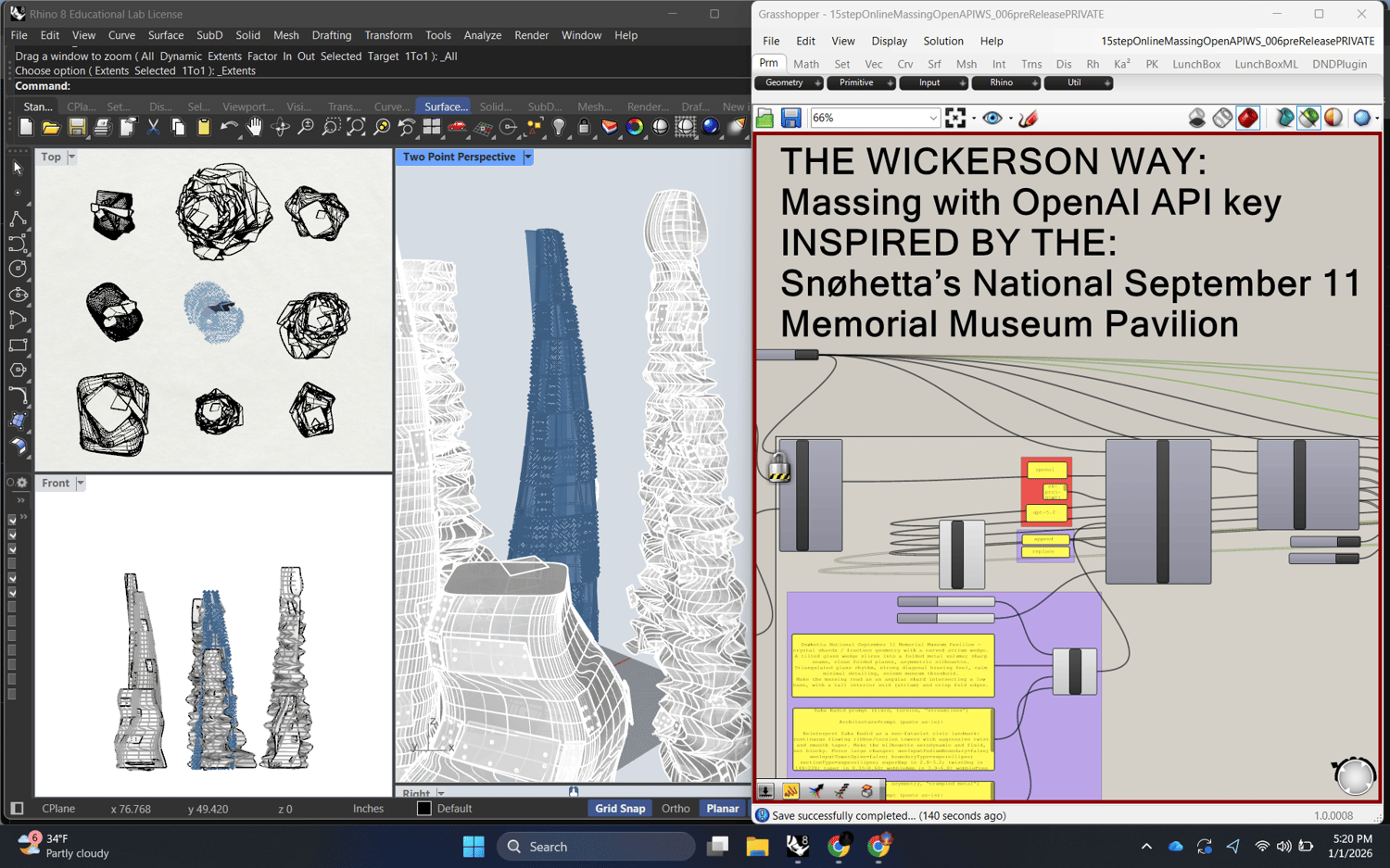

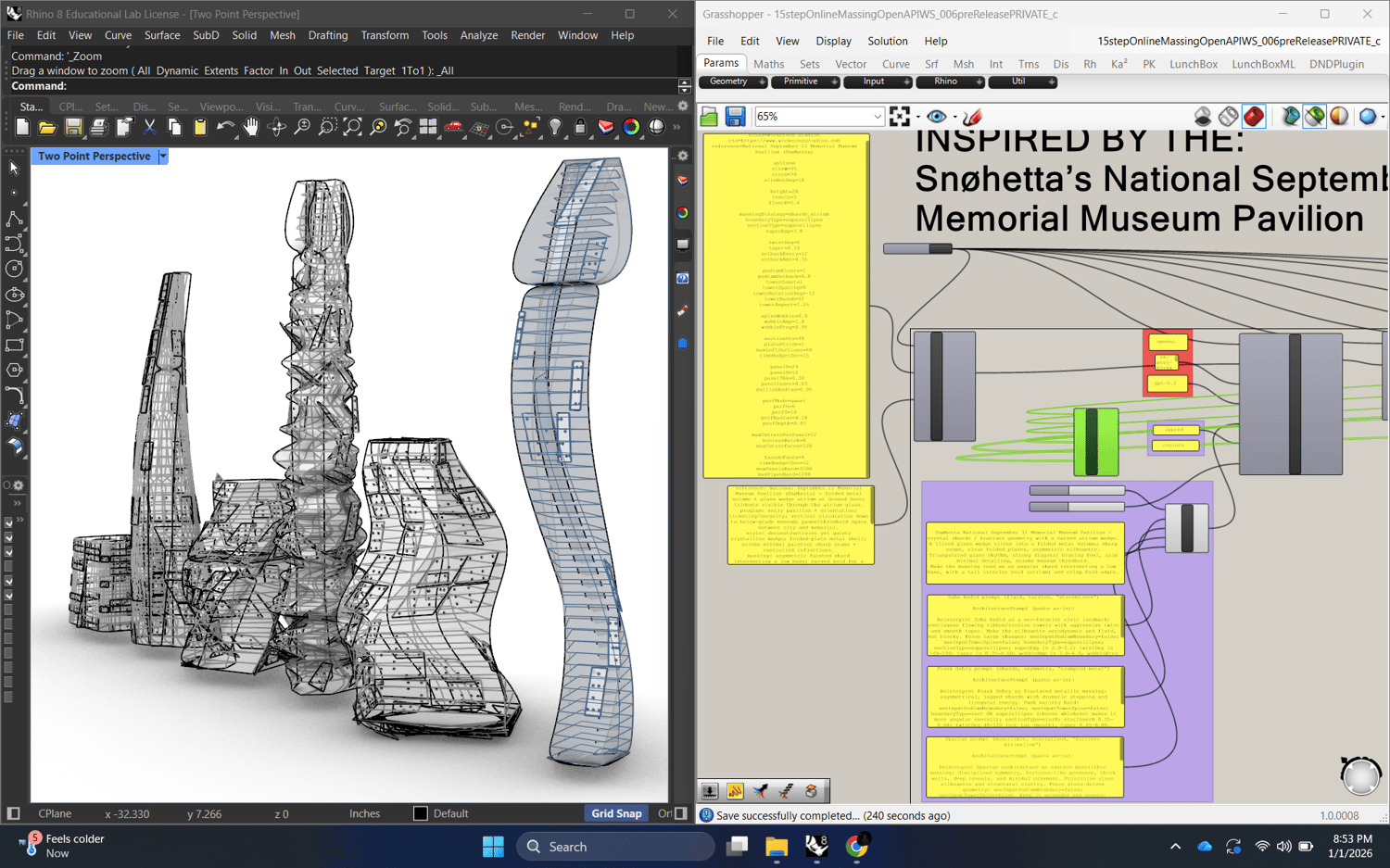

STEP_03 — Massing

• Converts floorplate logic into true 3D building bodies:
• lofted tower Breps
• taper/twist/setbacks
• optional skybridge / multi-tower spacing
• Output: MassingBreps (+ reference curves/spines as needed).

STEP_04 — Façade System v1 (Panels + Mullions)

• Derives façade segmentation from massing:
• panel grids (U/V)
• mullions / frame primitives
• panel thickness/inset
• Output: PanelBreps, MullionBreps, plus tag streams for packaging.

STEP_05 — Bake-Ready Panels (SAFE + CAPPED)

• Selects/buckets façade elements to keep computations realistic:
• caps per façade zone
• batching logic
• avoids “boolean everything” failure modes
• Output: curated Breps for downstream perforation / export.

STEP_06 — Perforation System

• Generates perforation cutters first (fast + inspectable).
• Optional boolean cutting (guarded by caps/time budgets).
• Output: PerforationCutters, optional PerforatedPanels, plus performance logs.

STEP_07 / STEP_08 / STEP_09 — Assembly + Optimization + Export Prep (optional but common)

Depending on your build, these nodes typically handle:

• assembly consolidation (AllBreps/AllCurves)
• tagging (LayerTags…)
• performance caching / simplified previews
• JSON/GIS/IFC prep (when applicable)

STEP_10_SAFE — Packaging / Bake to Rhino (Edge-Triggered)

• Bakes Breps/Curves into Rhino once per toggle (False→True).
• Sorts by LayerRoot + tag-based sublayers, optional grouping.
• Avoids doc-event infinite loops by design.
• Output: baked object IDs + report.

Why this matters for Wickerson Studios R&D (2026)

A platform, not a one-off script

This series is a research-grade generative architecture framework:

• fast concept exploration
• consistent parametric control
• repeatable results across client briefs
• expandable step architecture (drop-in new “STEP modules”)

Built for services + deliverables

Wickerson Studios can deploy this pipeline for:

• architectural concept generation (massings + façade identities)
• rapid precedent morphing (prompt → cfg families)
• façade rationalization (panelization + mullion logic)
• perforation and shading studies (cutters + safe boolean workflows)
• packaged CAD delivery (layered Rhino models, tagged assemblies)
• R&D prototyping for studios, firms, and academic labs

Typical client workflow

1. Client provides precedent / goals (program + style + constraints).
2. Wickerson Studios defines a master cfg baseline + sfg intent channels.
3. STEP_01b iterates prompts into multiple “families” quickly.
4. STEP_02–06 generates high-LOD assemblies (massing + façade + perforation).
5. STEP_10_SAFE packages and bakes clean deliverables with consistent layers/tags.

What’s included as a product / service package

• Full STEP_00–10 script series (Grasshopper C# nodes)
• Default cfg/sfg templates + example prompts (multiple archetypes)
• Safe performance presets (caps/batching/time budgets)
• Naming + tagging conventions (“Wickerson Way” organization)
• Optional custom modules (diagrid, ribs, TPMS skins, structural logics, fabrication export)
