Wickerson Studios Floor-plan Compiler + Geometry Builder (PlanVec JSON Schema v5.0)

Standard Perpetual $799 – Freelance architects / small studiosScript 1 + Script 2 (full pipeline)

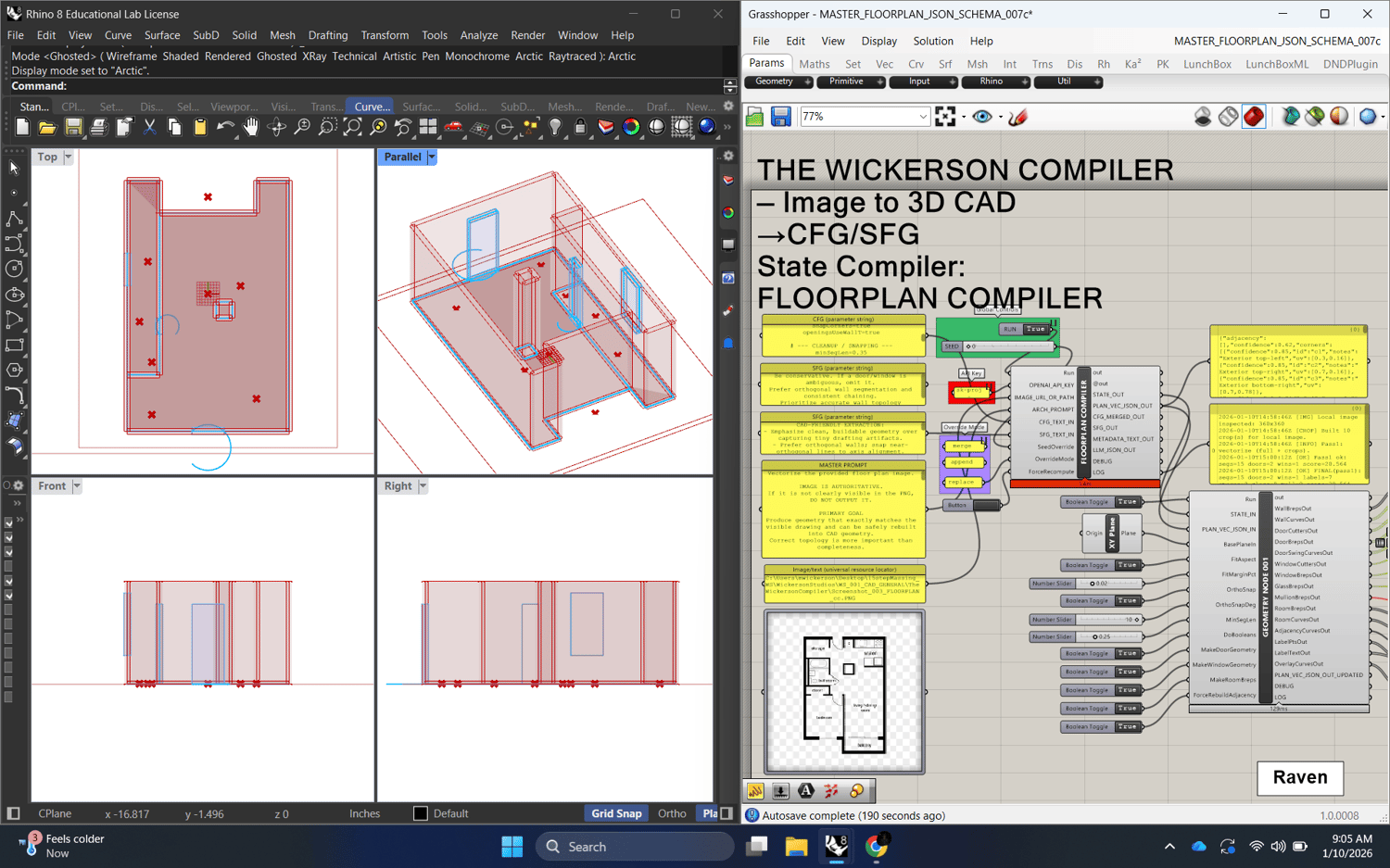

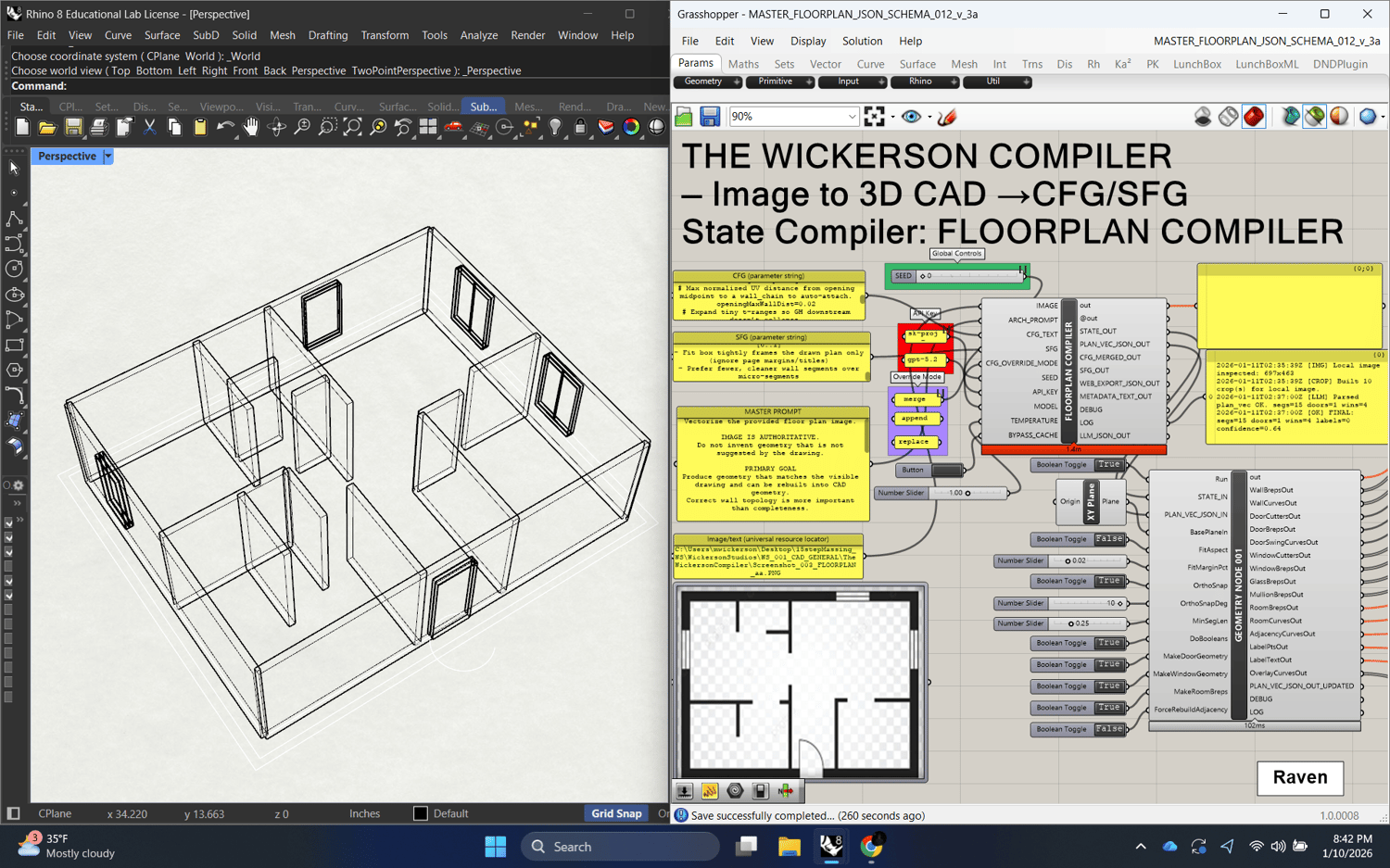

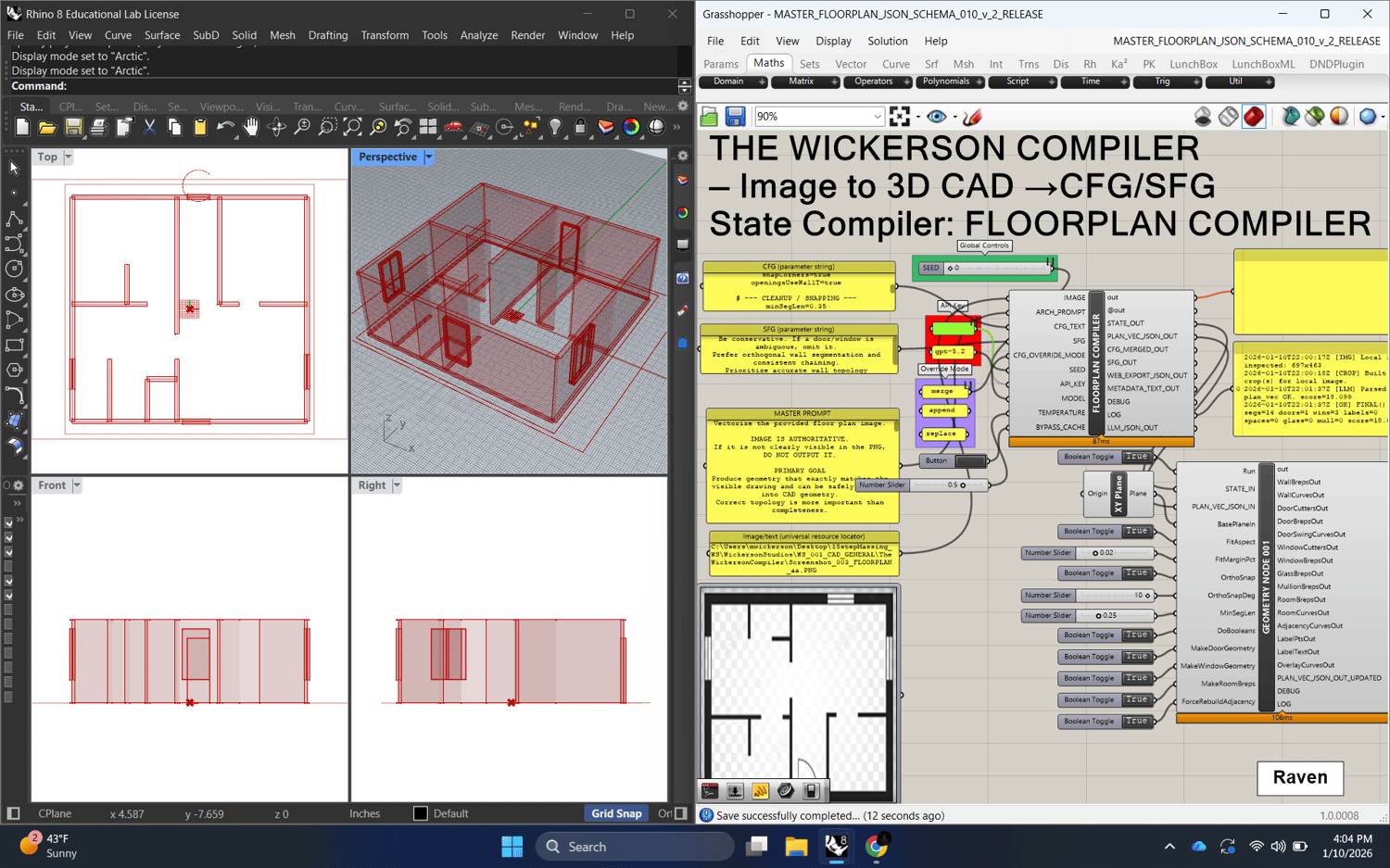

Wickerson Studios’ Floor Compiler + Geometry Builder is a two-stage pipeline that converts a 2D floor plan image into a strict, structured JSON “PlanVec” and then turns that data into clean Rhino/Grasshopper geometry—walls, openings, rooms, and connectivity—ready for downstream modeling.

Script_01 – Floor-Plan Generation

Full Version 5.0 (Wickerson Studios)

What this system is

Script_01 is a production-grade floor-plan vectorization engine written entirely in C# for Grasshopper. It converts a single raster floor-plan image into a fully structured, room-aware vector model with walls, doors, windows, labels, and room polygons — without hallucination, confidence inflation, or geometric conflicts.

Version 5.0 represents a major architectural maturity point: the system now reasons room-by-room, resolves opening–wall conflicts deterministically, and outputs schema-strict PlanVec JSON suitable for CAD, BIM, and web pipelines.

Core Capabilities (V5.0)

• Wall segmentation + ordered wall chains
• Door detection (swing-aware, wall-anchored)
• Window detection (thin-line + exterior bias)
• Room polygon generation (Rooms LOD)
• Room naming + conservative room typing
• Label extraction and spatial mapping
• Multi-pass refinement (topology → openings → labels)
• Binary free-space analysis for room inference
• Deterministic IDs and stable ordering
• Honest confidence scoring (no boosting)
• Rhino / Grasshopper coordinate correctness (+Y up)

Architectural Complexity (High-Level)

Pipeline stages:

1. Image ingestion & preprocessing

• Upscaling, binarization, edge extraction

1. Multi-scale image analysis

• Full image
• Overlapping grid crops
• Edge strips
• Corner zooms
• Room tile crops

1. LLM-driven reasoning (3 passes)

• Pass 1: Global wall topology
• Pass 2: Topology refinement & chain quality
• Pass 3: Openings, windows, labels

1. Room LOD generation

• Closed-loop wall inference
• Binary free-space fallback
• Polygon simplification
• Label-to-room assignment

1. Geometry normalization & conflict resolution

• Ortho snapping
• Micro-segment cleanup
• Opening-on-wall validation
• Corner avoidance
• Automatic repair or safe removal

1. Strict schema serialization

• Responses API json_schema enforcement
• PlanVec + Rooms LOD
• Web export pack
• Debug + logs

Why Version 5.0 is Important

• First room-aware release
• Eliminates door/window vs wall conflicts
• No mirrored or flipped geometry
• Deterministic, auditable output
• Stable enough for production use
• Designed for future extensions:
• room adjacency
• multi-story plans
• furniture LOD
• BIM export

Script 2 — Geometry Builder (STEP_FP_02_VECTOR_HI_LOD, PNG-LOCKED)

This script is the “data-to-geometry” engine. It takes PlanVec JSON (or the full EngineState from Script 1) and reconstructs the floor plan as Rhino geometry.

Key capabilities:

• Segment-first wall construction: Prefers wall_segments + wall_chains (most robust) and falls back to legacy wall polylines if needed.
• Correct opening placement via chain parameterization: Uses wall_chain_id + t0/t1 so door/window cutters land correctly along the chain polyline—stable even after snapping/cleanup.
• Topology cleanup: Snaps endpoints to detected corner IDs, optionally rectifies near-orthogonal segments, and cleans polylines.
• Model-ready solids: Generates wall Breps, door/window cutters, optional door swings and window assemblies (frames/glass/mullions), and optional boolean cuts.
• Space + adjacency enrichment: Auto-fills missing boundary segment IDs, can infer spaces from labels inside closed chains (low confidence), and can rebuild adjacency by connecting spaces through doors.
•


Together, these scripts turn messy 2D drawings into a stable, inspectable PlanVec JSON contract and then into editable, parametric Rhino geometry—a reliable bridge from image evidence to CAD/BIM-ready modeling.

Downloadable README

I generated a readme.txt describing the pipeline, schema concepts, inputs/outputs, key knobs, and troubleshooting.

Wickerson Studios — Floor Compiler + Geometry Builder

JSON Schema v1.0 (PlanVec)

OVERVIEW

This toolchain turns a 2D floor plan image (PNG/JPG or HTTPS URL) into a strict, machine-readable vector “PlanVec” JSON payload, then converts that payload into clean Rhino/Grasshopper 3D geometry (walls, doors, windows, rooms, and adjacency).

It is built as two Grasshopper C# script nodes:

1) Script 1 — Floor Compiler (STEP_FP_06z)

  • Ingests an image (remote URL or local file).

  • Calls OpenAI’s Responses API with a strict JSON Schema (v1.0).

  • Produces a PlanVec JSON object containing walls, segments/chains, openings, labels, spaces, and adjacency.

  • Emits “requirements” (units, wall/door/window defaults, snapping/boolean preferences) for downstream modeling.

  • Uses deterministic seeds + caching to avoid repeat API calls.

2) Script 2 — Geometry Builder (STEP_FP_02_VECTOR_HI_LOD, PNG-LOCKED)

  • Reads PlanVec JSON (or the EngineState from Script 1).

  • Maps UV coordinates (0..1 image space) into Rhino world space using a base plane + unit width/depth.

  • Builds per-segment wall solids, door/window cutters, optional door/window geometry, room slabs, and adjacency curves.

  • Repairs and enriches topology: corner snapping, chain parameterization (t0/t1), auto boundary_segment_ids, and optional adjacency rebuild.

─────

WHAT YOU GET (OUTPUTS)

Script 1 outputs:

• PLAN_VEC_JSON_OUT: Strict PlanVec JSON (Schema v1.0)

• STATE_OUT: EngineState JSON (includes merged config, requirements, metadata, logs)

• CFG_MERGED_OUT / SFG_OUT: merged configuration + notes

• LLM_JSON_OUT: raw model output (already schema-shaped)

• LOG / DEBUG: diagnostics

Script 2 outputs (Rhino/Grasshopper geometry + updated JSON):

• WallBrepsOut, WallCurvesOut

• DoorCuttersOut, DoorBrepsOut, DoorSwingCurvesOut

• WindowCuttersOut, WindowBrepsOut

• GlassBrepsOut, MullionBrepsOut (optional modeling features)

• RoomBrepsOut, RoomCurvesOut

• AdjacencyCurvesOut (space-to-space connectivity)

• LabelPtsOut, LabelTextOut

• OverlayCurvesOut (fit box + guide curves)

• PLAN_VEC_JSON_OUT_UPDATED (PlanVec after topology fixes/inference)

• LOG / DEBUG

─────

PLANVEC JSON (SCHEMA v1.0) — CORE IDEAS

PlanVec uses FULL-IMAGE UV coordinates in [0..1] for all points.

Key elements:

• fit: UV bounding box describing where the usable plan area sits in the image.

• corners: stable corner IDs + UV positions to snap segments.

• wall_segments: explicit segment endpoints + corner references + chain membership.

• wall_chains: ordered lists of segment IDs (open or closed), used to parameterize openings.

• doors/windows: openings with either endpoints (a/b) OR chain parameterization (wall_chain_id + t0/t1).

• labels: room/space text and positions.

• spaces: rooms/spaces linked to boundary chains and segment lists, plus optional loops.

• adjacency: graph edges connecting spaces through doors.

• confidence/notes: per-object + global confidence and human-readable notes.

Why chains + t0/t1 matter:

Openings placed on a chain via t0/t1 remain stable even when endpoints are snapped/cleaned. Script 2 recomputes

chain polyline length and uses t0/t1 to precisely place door/window cutters on the correct wall.

─────

WICKERSON STUDIOS – FLOOR PLAN GENERATION PIPELINE

SCRIPT_01 – FULL VERSION 5.0

========================================

OVERVIEW

--------

Script_01 is a production-grade Grasshopper (C#) floor-plan vectorization engine.

It converts a single raster PNG/JPG floor-plan image into a fully structured,

machine-readable PlanVec model suitable for CAD, BIM, web viewers, and downstream

analysis.

Version 5.0 represents a major architectural milestone: room-aware, conflict-free,

multi-pass, schema-strict, and confidence-honest.

CORE CAPABILITIES

-----------------

• Wall topology extraction (segments + ordered chains)

• Door detection (swing-aware, wall-anchored)

• Window detection (thin-line, module, exterior bias)

• Room polygon generation (LOD: rooms)

• Room labeling and typing (BED, BATH, KITCHEN, etc.)

• Label extraction (text → spatial mapping)

• Confidence scoring (no artificial boosting)

• Full UV [0..1] coordinate system

• Rhino/GH +Y-up compatibility (V-axis correction)

ARCHITECTURE

------------

The system is intentionally multi-stage and conservative.

1. IMAGE INGEST

  - Local or remote image support

  - Pixel inspection and size logging

  - Optional upscaling, binarization, and edge extraction

2. MULTI-SCALE CROPPING

  - Full image

  - Grid crops (overlapping)

  - Edge strips

  - Corner zooms

  - Room-tile crops from free-space

3. LLM PASSES

  PASS 1 – Global topology

   • Walls, major chains, obvious openings

  PASS 2 – Topology refinement

   • Segment completeness, chain continuity

  PASS 3 – Openings & labels refinement

   • Doors, windows, text, symbols

4. ROOM LOD GENERATION

  - Closed-loop wall chains → candidate rooms

  - Binary free-space tiles → fallback rooms

  - Polygon simplification and filtering

  - Label-to-room assignment

  - Room typing (conservative heuristic)

5. NORMALIZATION & VALIDATION

  - UV clamping

  - Ortho snapping

  - Micro-segment removal

  - Opening-to-wall validation

  - Conflict resolution (doors/windows vs corners/walls)

  - Deterministic ID assignment

6. CONFIDENCE HANDLING

  - Raw confidence from model

  - No scaling or inflation

  - Strict clamping only

7. OUTPUT

  - plan_vec JSON (strict schema)

  - rooms LOD polygons

  - web-export JSON pack

  - debug + log streams

DATA MODEL (SIMPLIFIED)

-----------------------

plan_vec

 ├─ fit (UV bounding box)

 ├─ wall_segments

 ├─ wall_chains

 ├─ doors

 ├─ windows

 ├─ rooms

 ├─ labels

 ├─ confidence

 └─ notes

Each entity:

• Fully explicit geometry

• Confidence per item

• Notes for auditability

KEY DESIGN PRINCIPLES

---------------------

• Image is the only source of truth

• Never hallucinate geometry

• Prefer omission over invention

• Resolve conflicts deterministically

• Schema correctness over flexibility

• Debuggability over opacity

WHY VERSION 5.0 MATTERS

-----------------------

• Room-aware (true spatial understanding)

• Conflict-free openings

• Stable, repeatable output

• Production-safe schema enforcement

• Ready for CAD, BIM, and web pipelines

• Designed for extension (adjacency, levels, furniture)

INTENDED USE

------------

• Architectural plan digitization

• CAD/BIM preprocessing

• AI-assisted drafting workflows

• Web-based plan viewers

• Research and prototyping

AUTHORSHIP

----------

Wickerson Studios

https://www.wickersonstudios.com

Script Series: Script_01 – Floor Plan Generation

Version: 5.0 (Room LOD, Conflict-Free)

─────

SCRIPT 2 — GEOMETRY BUILDER (STEP_FP_02_VECTOR_HI_LOD) DETAILS

Purpose:

Turn PlanVec JSON into Rhino geometry, while repairing and enriching topology for modeling.

Highlights:

• Segment-first wall building

 - Prefers wall_chains + wall_segments (Script01d/Schema v1.0)

 - Falls back to walls[].segments or walls[].pts for older payloads

• Corner snapping + ortho cleanup

 - If corners exist, endpoints snap to corner UVs for crisp joins.

 - Optional ortho rectify snaps near-orthogonal segments.

• Correct opening placement

 - Uses wall_chain_id + t0/t1 when present, ensuring doors/windows land correctly after snapping.

 - Uses thicknessAtChainT for local thickness-based cutters.

• Boolean-ready wall solids

 - Optional boolean difference to cut doors/windows from walls.

• Spaces + adjacency enrichment

 - Auto-fills boundary_segment_ids from boundary_wall_chain_id.

 - If spaces are missing, infers spaces from labels inside closed chains (low confidence).

 - Rebuilds adjacency via doors when missing or forced.

Inputs (Script 2):

• Run (bool)

• PLAN_VEC_JSON_IN (recommended) OR STATE_IN (EngineState from Script 1)

• BasePlaneIn (mapping plane)

• FitAspect, FitMarginPct

• OrthoSnap, OrthoSnapDeg

• MinSegLen

• DoBooleans

• MakeDoorGeometry, MakeWindowGeometry, MakeRoomBreps

• ForceRebuildAdjacency

─────

TROUBLESHOOTING

• “No openings detected”:

 - Keep cropEnable=true and cropMode=2 (9-grid).

 - Increase detailBias (e.g., 1.8–2.5).

 - Ensure max_output_tokens are high enough (Script 1 already sets high budgets).

• Local image too large (>12MB):

 - Downscale or provide an HTTPS URL.

• Doors/windows appear misplaced:

 - Ensure wall_chain_id + t0/t1 are present; Script 2 is designed to use these.

 - Turn on snapCorners for more stable topology.

• Weird over-detection (“runaway”):

 - The compiler rejects extreme cases, but lowering detailBias can help.

 - Reduce temperature to ~0.10–0.18 for more determinism.

─────

NOTES

• Coordinates in PlanVec are UV [0..1] of the FULL IMAGE.

• Geometry mapping uses unitW/unitD + fit box scaling to place plan in world space.

• This pipeline is “image-first”: it prefers measured evidence (image/crops) over hints.

Wickerson Studios — www.wickersonstudios.com

Pricing Structure

Pricing reflect both one-time license and subscription models, depending on buyer type.

One-Time License (Perpetual)

For users who want a standalone, lifetime license for the tools:

TierPriceWho It’s ForWhat’s Included

Basic Perpetual $299 – Individual designers / studentsScript 1 only (PlanVec JSON output)

Standard Perpetual $799 – Freelance architects / small studiosScript 1 + Script 2 (full pipeline)

Professional Perpetual $1,499 – Firms / power usersAll features + lifetime minor updates + priority support
