Wickerson Studios — General CAD LLM+RAG Grasshopper Pipeline (C# Script Series)

This product is a 10-node Grasshopper STEP pipeline (00 → 09) that turns CFG/SFG strings + prompts into stable, manufacturable CAD assemblies—with optional LLM + RAG support for prompt-driven design variation.

What it does

STEP_00 (Template Starting Script / INIT):

Builds a reusable EngineState (JSON) that holds your parsed CFG + SFG, normalized keys, default values, performance caps, and a starter RAG corpus. Every downstream node reads the same STATE, so the whole system stays consistent and predictable.

STEP_01b (Example Script / Beginning Prompts):

Takes DesignPrompt + ReferenceImageUrl + MetadataText and (optionally) calls the OpenAI Responses API to produce:

cfg overrides (strict allowed keys only)

sfg channel guidance

rag_docs aligned to your prompt

Includes deterministic fallback (no API key required) and input-signature caching so it won’t re-call the API when inputs haven’t changed.

Finished Algorithm Example (Downstream “real” step):

The later steps demonstrate a production-style algorithm that consumes final Breps and outputs sheet-ready documentation primitives (part outlines, label points/strings, leader curves) while honoring caps like timeBudgetSec, maxParts, and other performance limits—so Grasshopper stays fast and stable.

Why it’s powerful

BasePlane-consistent design pipeline (no drift, predictable transforms)

Versionable CFG/SFG strings for fast iteration, presets, and productized workflows

LLM optional (works offline via deterministic fallback)

Strict schema + key constraints keep everything stable and easy to debug

Built for fast recompute: caps on parts / complexity / runtime

Download the README

Download the readme .txt

Wickerson Studios — General CAD LLM+RAG Grasshopper Pipeline (C# Node Editor)

README.txt (Download & Include with the .gh file)

1) What this is

This project is a 10-node Grasshopper “STEP” pipeline (00 → 09) that combines:

• A robust PARAMETRIC CAD engine (RhinoCommon C#)

• A configurable CFG + SFG control system (plain-text strings)

• Optional OpenAI-driven prompting (text + reference image URL) via STEP_01b

• RAG-style “precedent memory” stored in STATE (swap to file/vector-store later)

• Performance & stability controls (BasePlane consistency + caps + fallbacks)

It’s designed as an all‑purpose template for generating “clean, buildable” CAD assemblies

from prompt-driven intent—while staying deterministic and fast when you need it.

2) What’s included (template + example + finished algorithm)

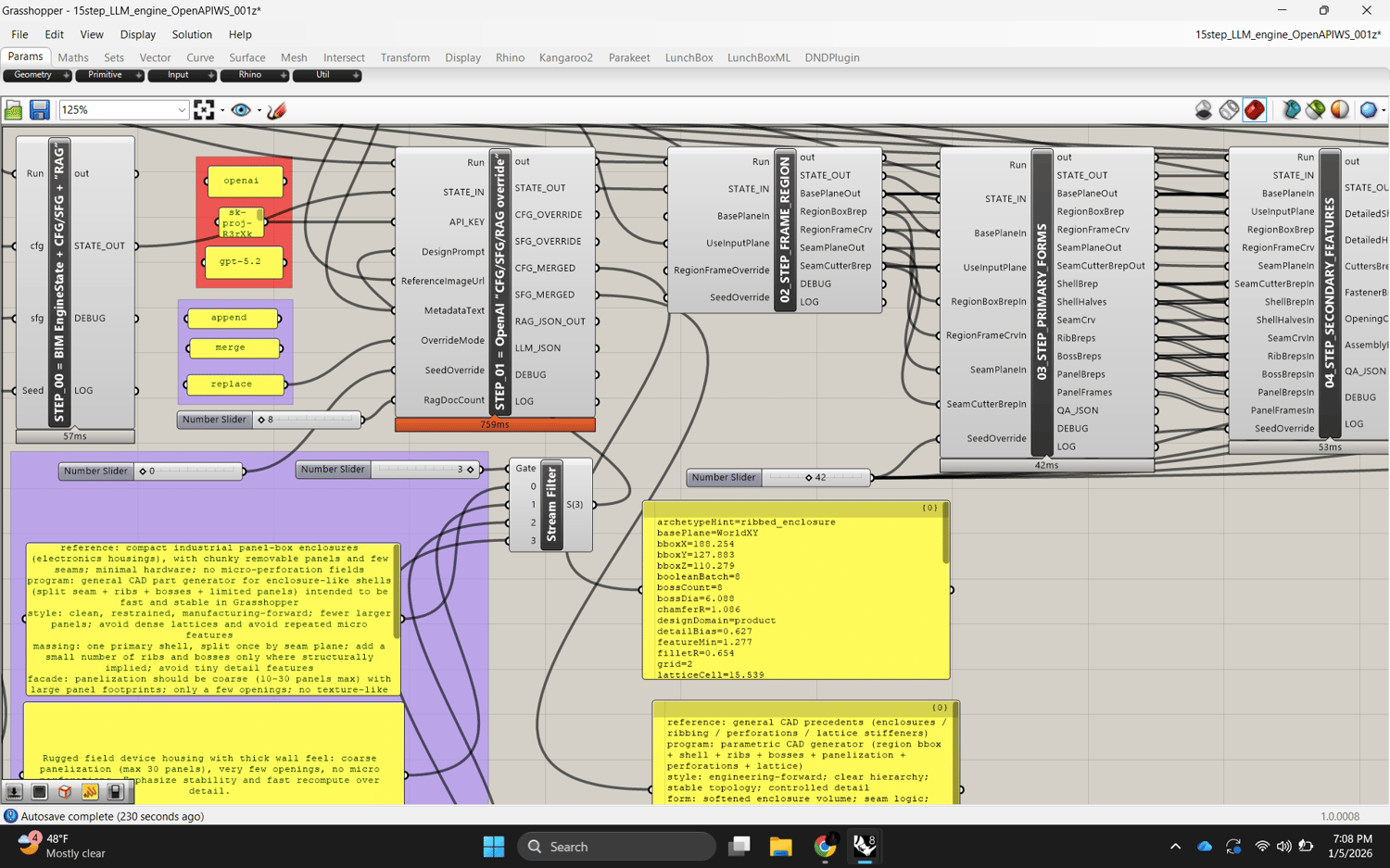

A) Template starting script (STEP_00 — INIT / Master CFG+SFG / EngineState)

• Creates the EngineState JSON (STATE)

• Parses cfg/sfg

• Normalizes keys

• Installs default options + performance caps

• Loads a starter RAG corpus (small embedded dataset)

• Outputs STATE + DEBUG + LOG so every downstream node stays consistent

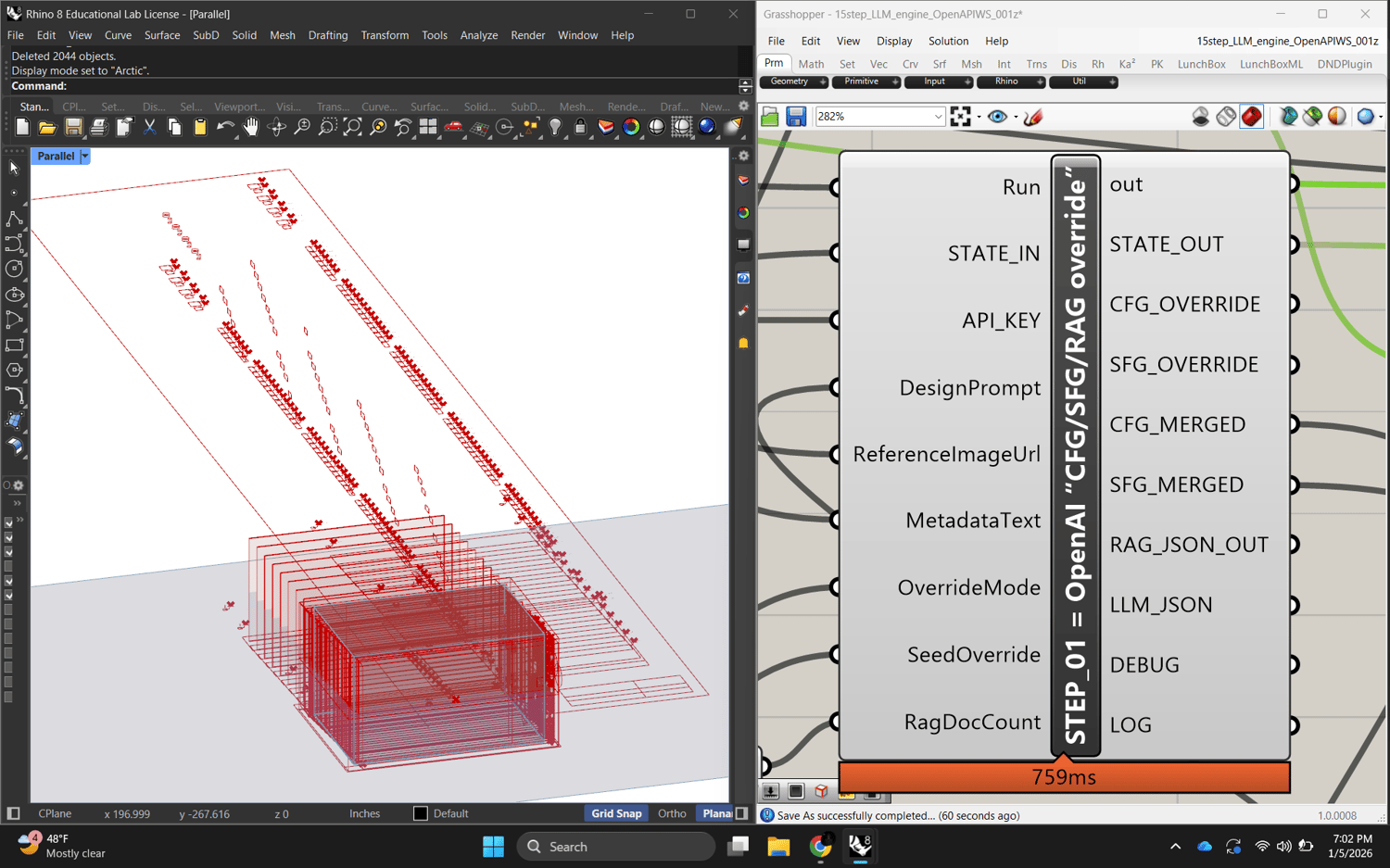

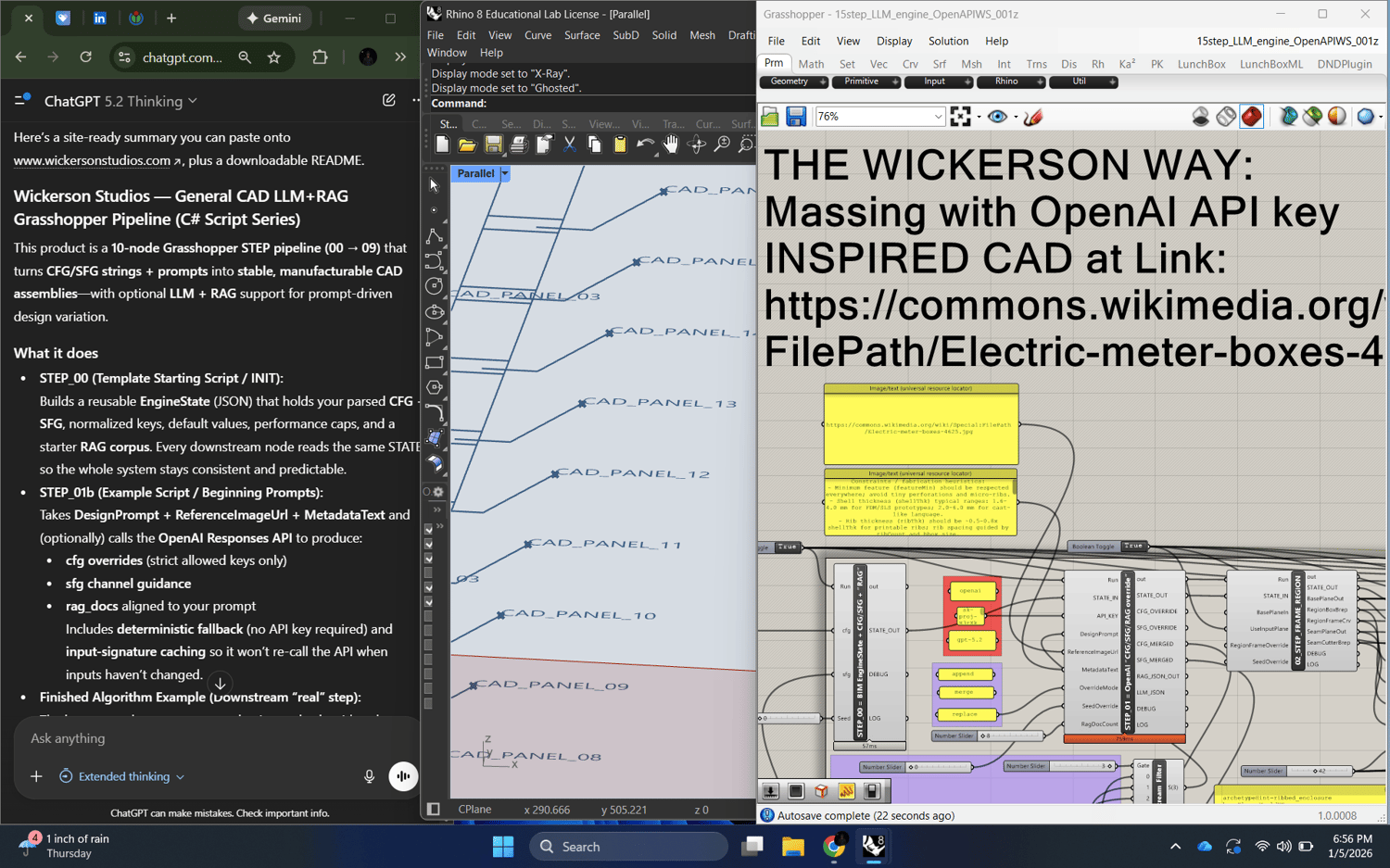

B) Example script (beginning prompts) (STEP_01b — OpenAI Prompting)

• Inputs: DesignPrompt + ReferenceImageUrl + MetadataText

• Uses OpenAI Responses API (optional) to generate:

- cfg overrides (only allowed keys)

- sfg channel text

- rag_docs list aligned to the prompt

• Includes:

- deterministic fallback mode if no key is present

- caching signature so it doesn’t re-call the API when inputs don’t change

- strict schema output (json_schema) for stability in Grasshopper

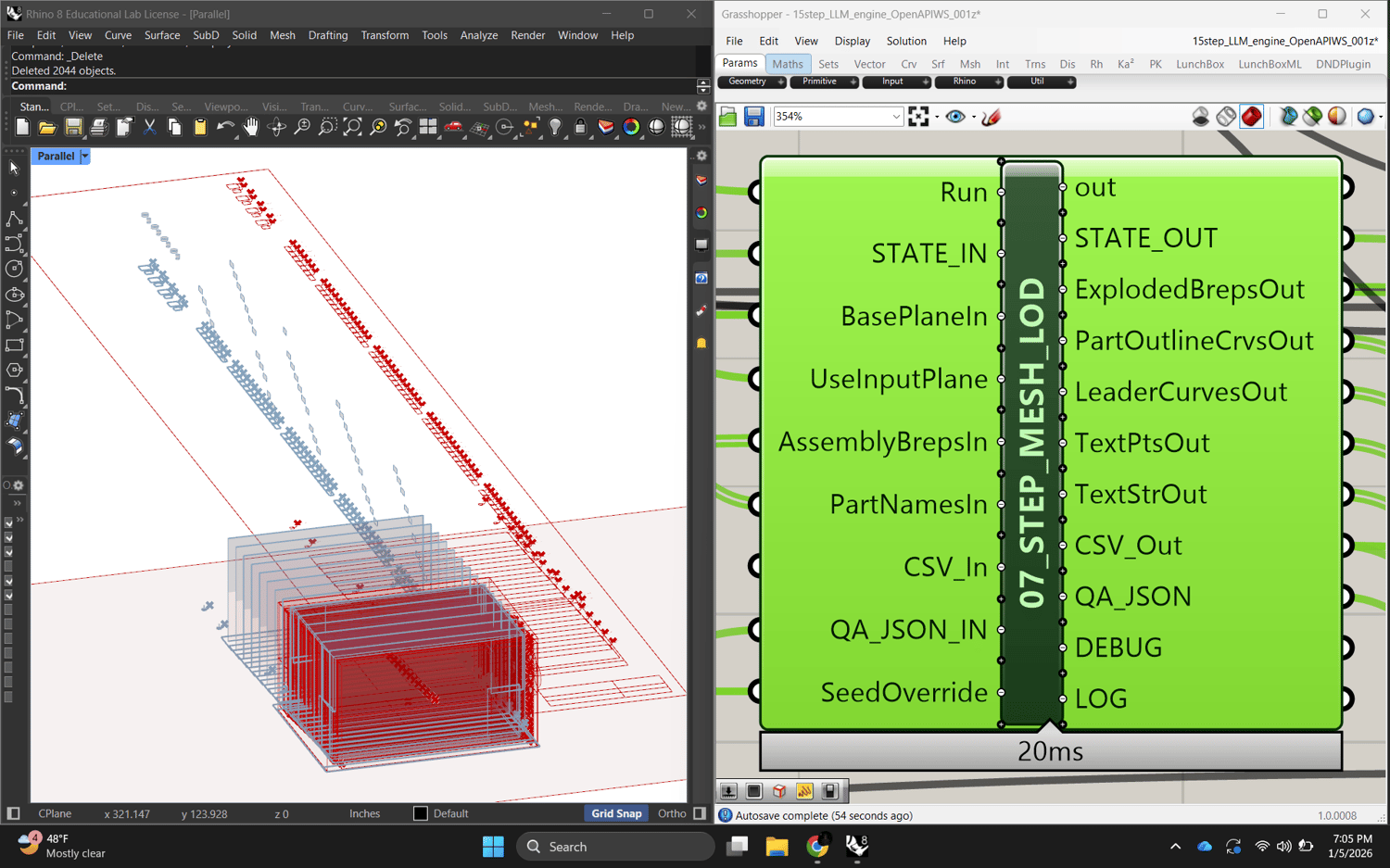

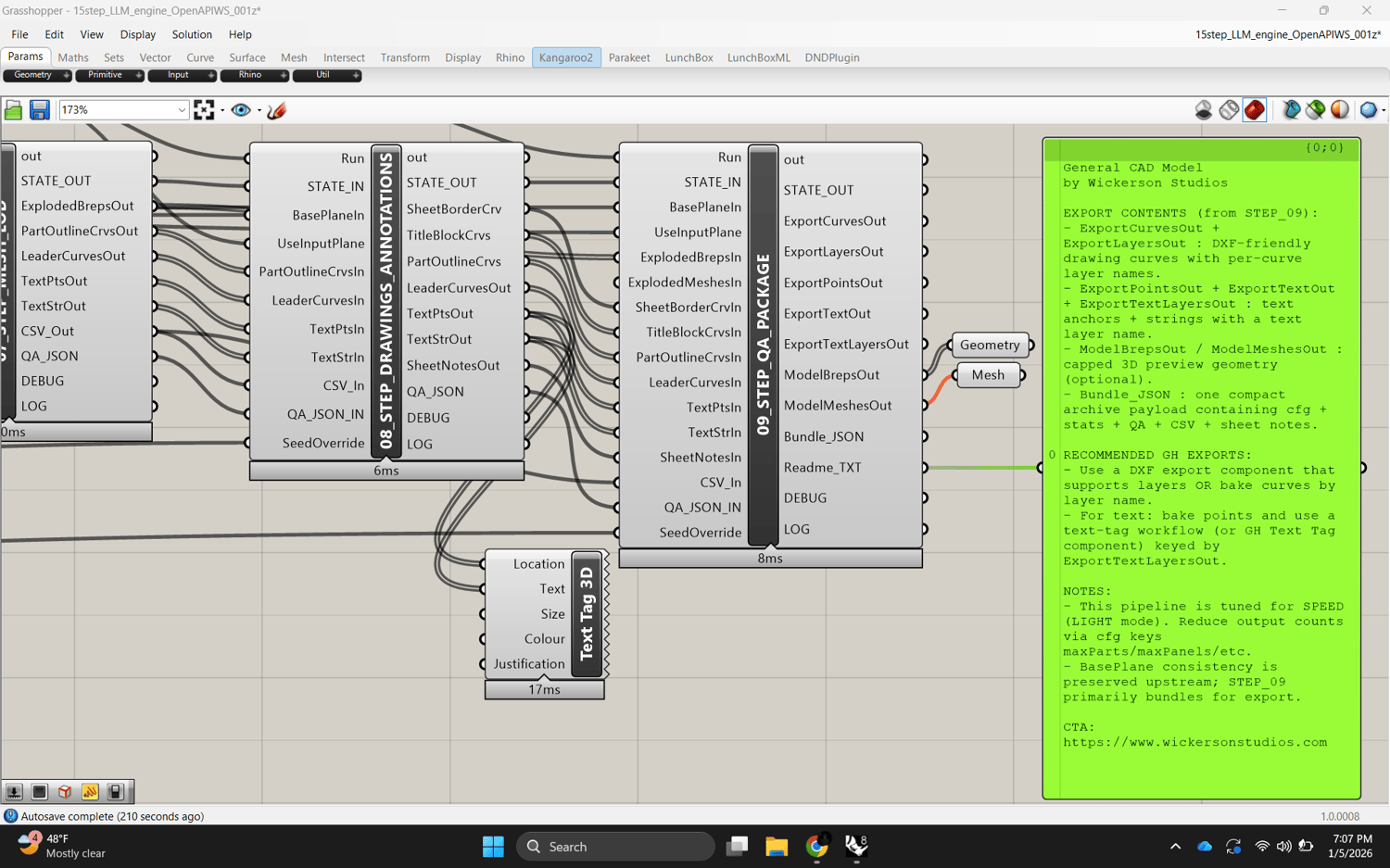

C) Example script (finished algorithm) (mid/late pipeline steps, e.g. STEP_07)

• Demonstrates a “real” downstream algorithm that:

- consumes assembly breps

- lays them out predictably on BasePlane (stack/grid)

- generates PartOutlineCrvs, TextPts/TextStr, LeaderCurves (sheet-ready)

- auto-builds a minimal CSV if CSV_In is empty

- honors timeBudgetSec + maxParts caps

• Shows the intended “production” style of the series:

stable, low-risk geometry operations and consistent outputs.

3) Requirements

• Rhino 7/8 + Grasshopper

• C# Script component (GH C# node editor / Script_Instance format)

• Internet + OpenAI API key (OPTIONAL; deterministic fallback works offline)

• If using OpenAI: allow https://api.openai.com/v1/responses

4) Quick start

1) Drop STEP_00 and STEP_01b onto your canvas and paste the scripts.

2) Provide a CFG string + SFG string + Seed.

3) In STEP_01b, paste:

• DesignPrompt (one of the samples below)

• ReferenceImageUrl (optional)

• MetadataText (optional)

4) Run STEP_00, then STEP_01b, then the downstream geometry steps.

Tip: If you want repeatable results, fix the Seed and avoid changing it mid-run.

5) Sample inputs (CFG / SFG / prompts)

A) CFG (lightweight defaults; fast)

(These keys may be different in your general CAD variant; keep the same style: key=value.)

brand=Wickerson Studios

project=General CAD LLM+RAG Generator

cta=https://www.wickersonstudios.com

B) SFG (structured focus guidance)

reference: “industrial product CAD precedent” (enclosures, brackets, clamps, housings) with clean part breakup + fasteners.

program: generate a manufacturable assembly (shell + ribs + bosses + panelization) with stable topology.

style: spartan, engineering-forward, readable seams, low ornament, high legibility.

massing: simple silhouette, clear split line, consistent draft direction, few unique parts.

facade: shallow panel relief, sparse vents, minimal fillets/chamfers (only where needed).

math: parameterized dims; clamps for min feature; LOD caps; time budgets to prevent heavy recompute.

notes: keep everything BasePlane-consistent; avoid drift; prefer bounding-box/plane logic to expensive booleans.

C) ReferenceImageUrl (optional)

Leave blank if you don’t have one yet. When you do:

• paste a direct image URL (https://...jpg / ...png), or use your own hosted image link.

D) MetadataText (optional)

Use this to “pin” real constraints:

• overall size, material, fabrication method, target part count, fastener sizes, etc.

Example:

Overall envelope 220 x 120 x 70 mm. Must include two screw bosses (M3) + snap-fit ribs.

Keep part count <= 40. Avoid dense panelization. Prefer planar faces.

E) Four example DesignPrompts (paste into STEP_01b)

1) Rugged electronics enclosure:

“Design a compact rugged enclosure with a clean split seam, sparse venting, and two internal PCB standoffs.

Keep the silhouette simple; emphasize manufacturable ribs + bosses; minimal panel lines.”

2) Modular clamp bracket:

“Generate a modular clamp bracket assembly with a primary shell, a clamping jaw insert, and two fastener bosses.

Keep fillets minimal; focus on structural ribs and clear assembly logic.”

3) Desk accessory organizer:

“Create a simple desk organizer body with partition ribs and a removable lid. Few parts, large planar faces,

shallow panel relief, and a single seam line that is easy to fabricate.”

4) Aerospace-style sensor pod:

“Produce a streamlined sensor pod housing with a clear midline seam split, sparse access panel, and internal stiffening ribs.

Keep the design light and avoid high panel counts; prioritize a clean silhouette.”

6) What makes it “production friendly”

• BasePlane consistency (no drifting coordinate frames)

• CFG/SFG strings for versionable configuration

• Deterministic fallback (works without the API)

• Strict schema outputs (predictable keys/values)

• Time + part caps to keep Grasshopper responsive

• Lightweight layout/annotation step for documentation outputs

7) Troubleshooting

• Outputs empty?

- Check wiring first (most common).

- Ensure Run=true on the node.

- Confirm the upstream Brep list is actually populated.

• STEP_01b not changing results?

- Your prompt might be too vague: include explicit dims/constraints in MetadataText.

- Ensure OverrideMode is “merge” or “replace” if you want stronger changes.

• Grasshopper slow?

- Lower maxParts, maxBooleans, timeBudgetSec.

- Use fewer panels/vents.

- Keep features above featureMin.

8) License / Usage

Use this pipeline as a template for your own parametric CAD products and generators.

If you share or sell derivatives, please credit Wickerson Studios where appropriate.

9) Wickerson Studios

https://www.wickersonstudios.com
