FloorPlanDesigner MinCore .dxf file into 3D CAD

FloorPlan Compiler

A 1,600-Line DXF-Driven Building Compiler

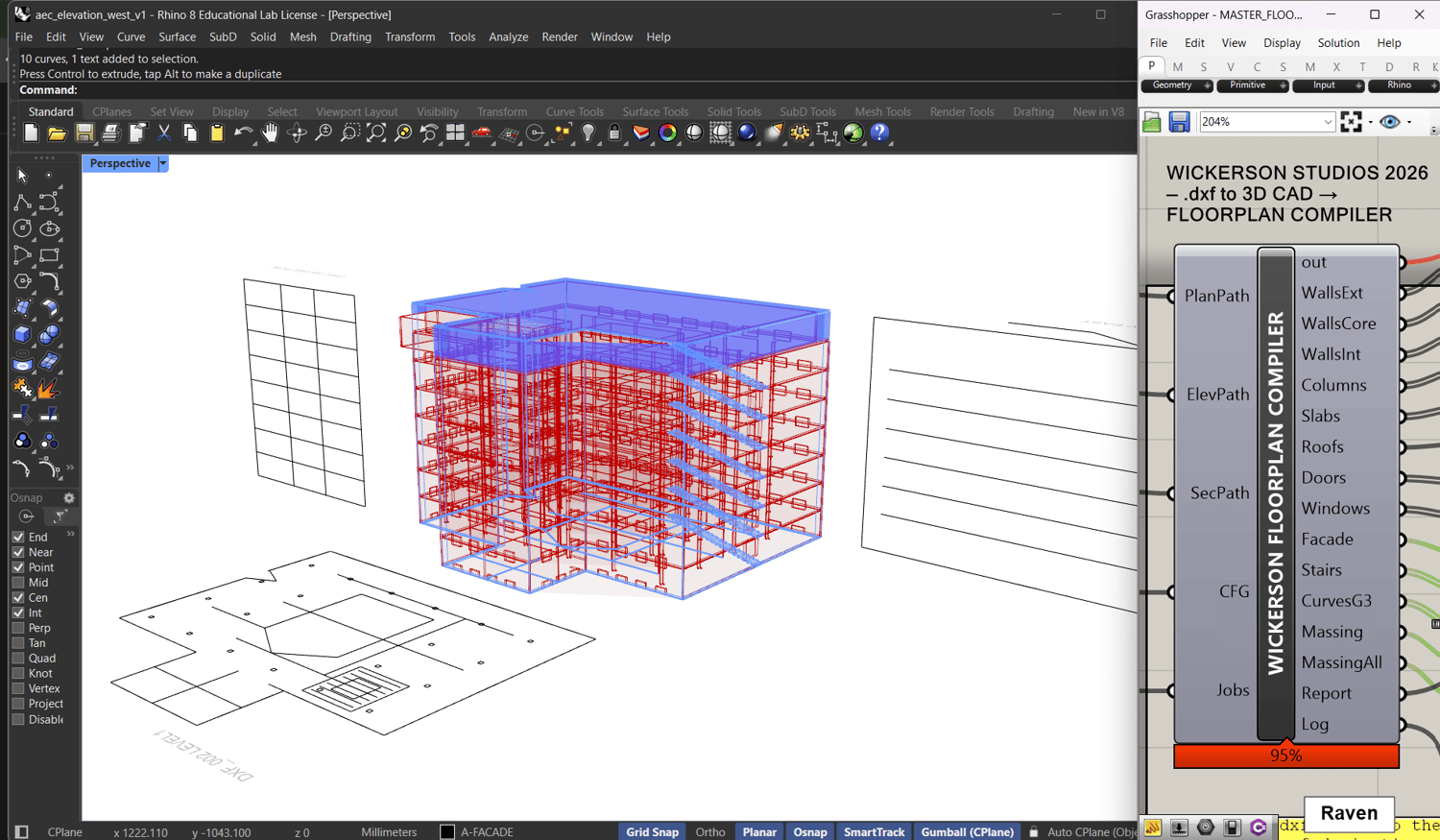

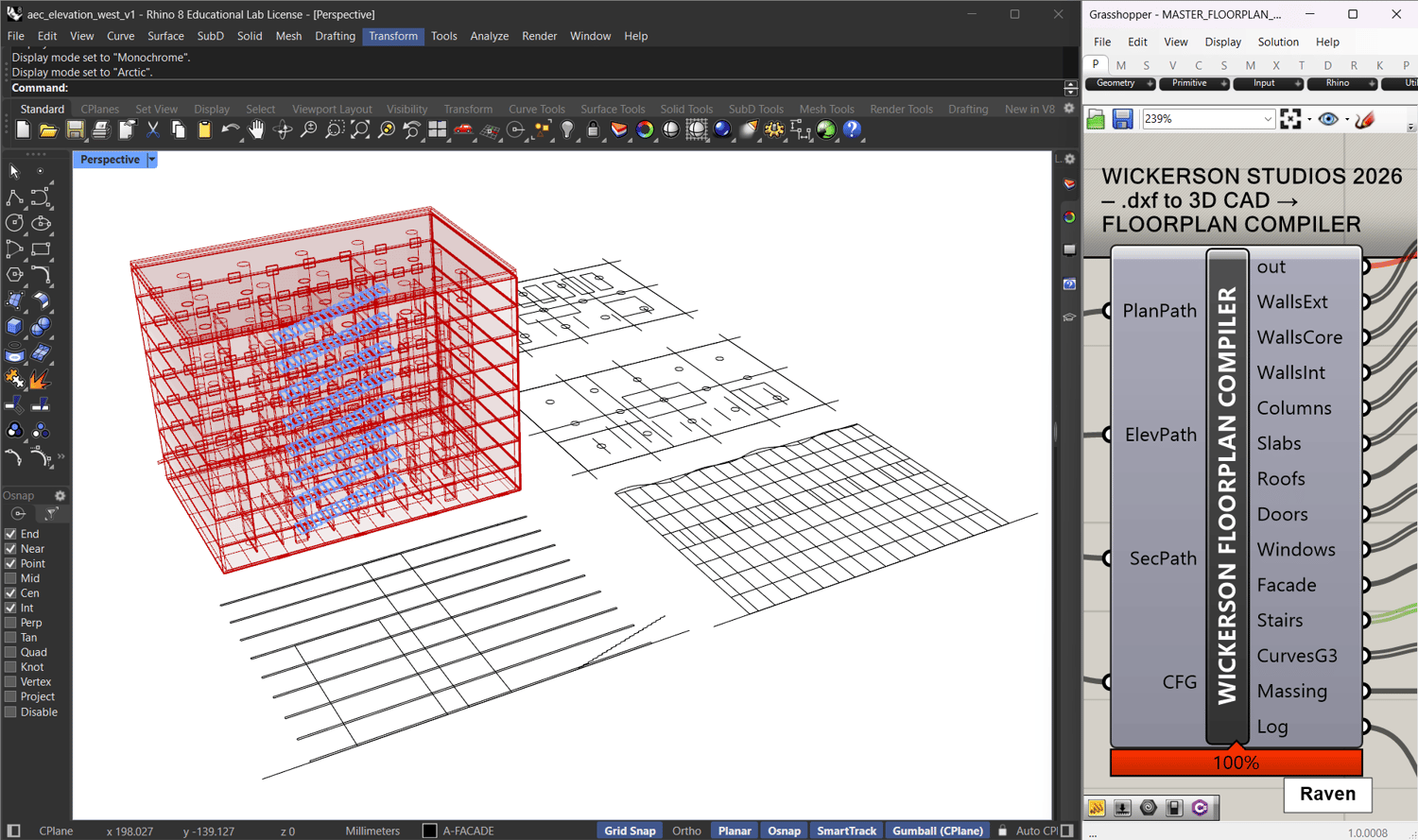

FloorPlan Compiler is a production-grade computational design system developed by Wickerson Studios that transforms conventional 2D architectural drawings into fully structured, multi-storey 3D building models.

At its core is over 1,600 lines of custom C# code — not a toy script, not a demo component — but a purpose-built compiler designed to handle real architectural drawings, real tolerances, and real design complexity.

What Makes It Different

Most parametric tools are thin wrappers around geometry operations.

FloorPlan Compiler is a system.

Those 1,600+ lines of C# encode:

• DXF parsing logic
• Architectural classification rules
• Multi-storey replication strategies
• Robust geometry reconstruction
• Fallbacks for imperfect drawings
• Config-driven behavior (no hardcoding)
• Solid modeling guarantees (closed, watertight output)

This isn’t “Grasshopper glue code.”

It’s an architectural compiler.

What It Does

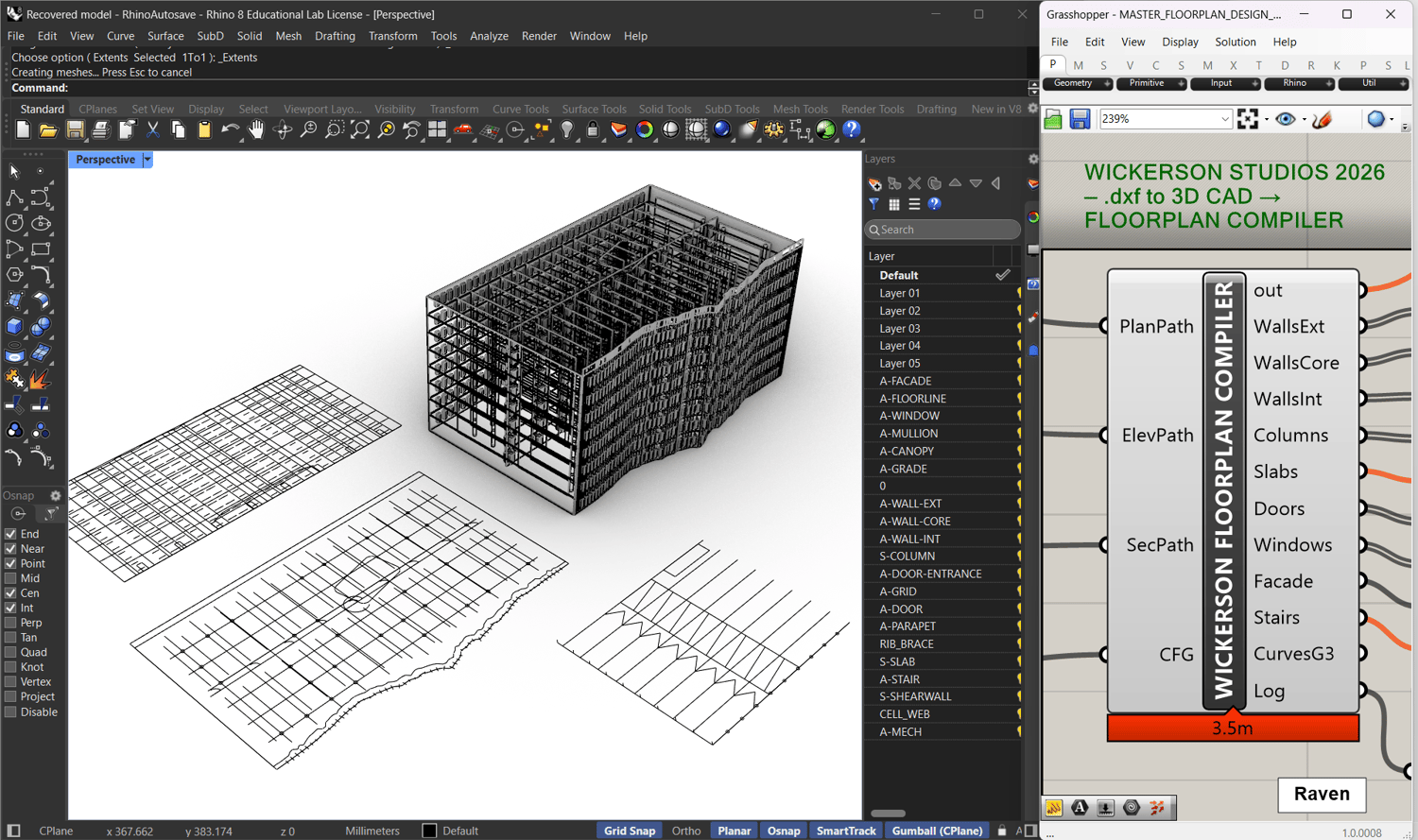

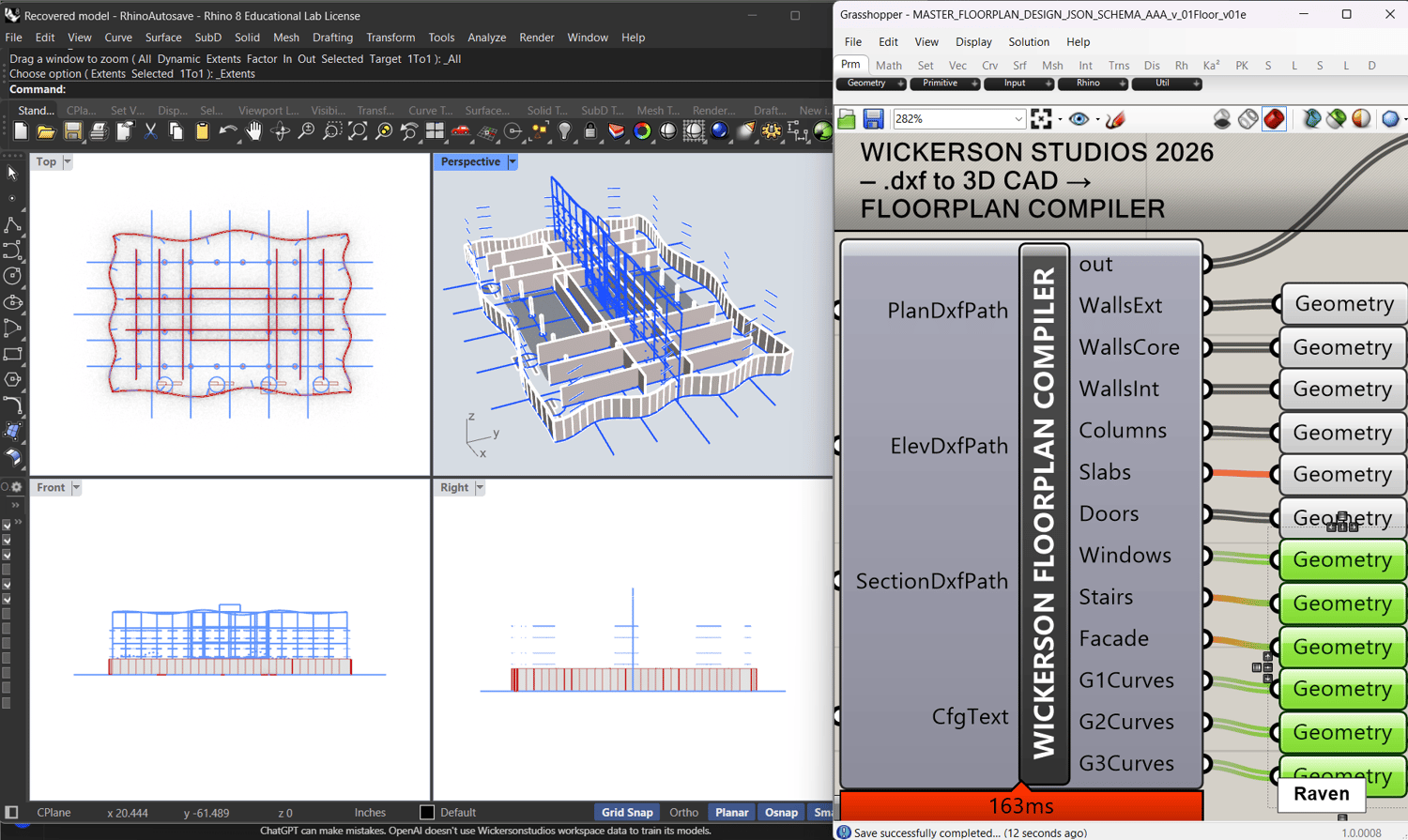

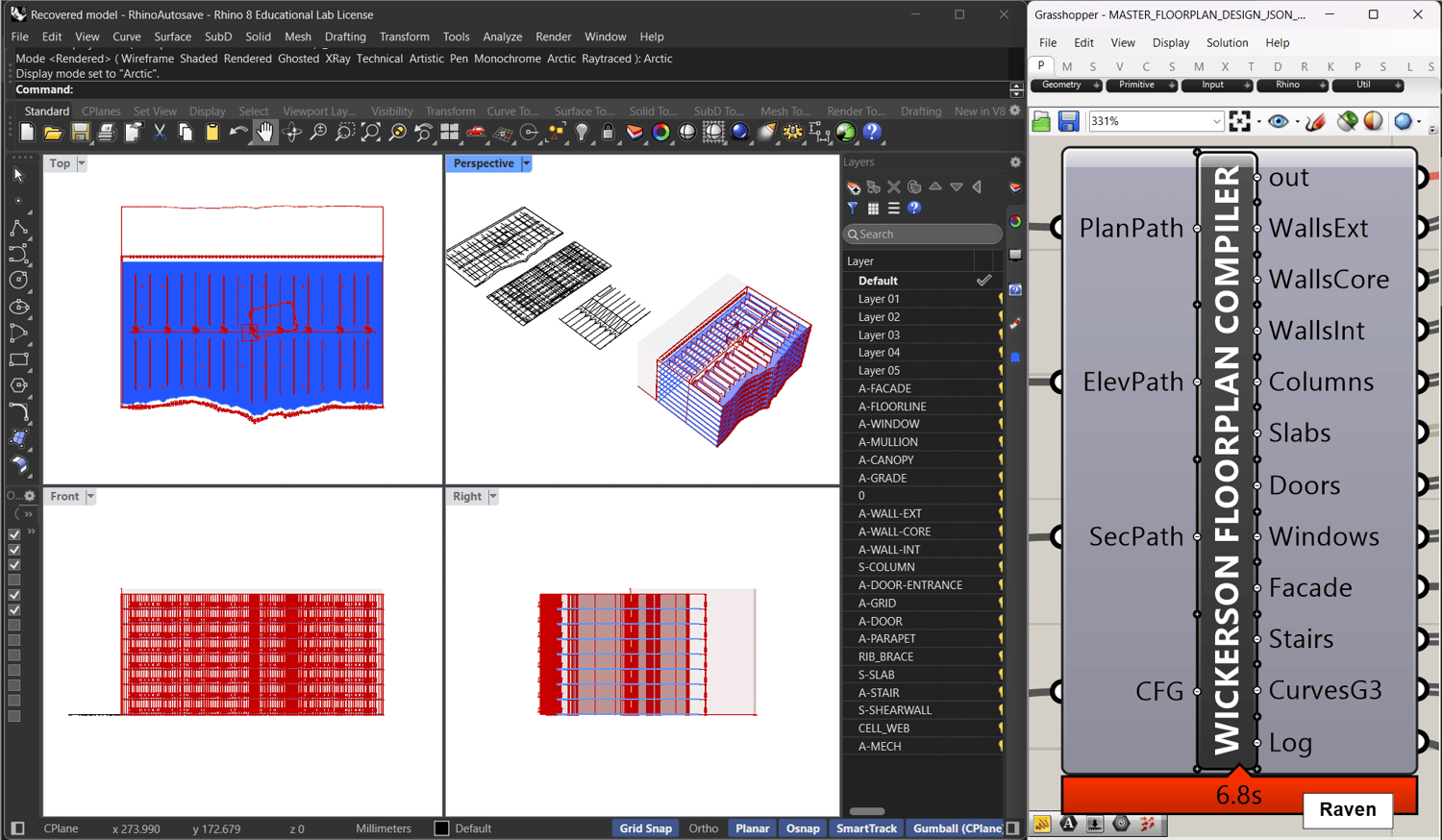

• Reads real architectural DXFs
• Plans, elevations, and sections are consumed directly — no redraw, no tracing.
• Multi-plan archetypes
• Assign different plans to different storeys (podium, typical, roof) using a concise mapping syntax.

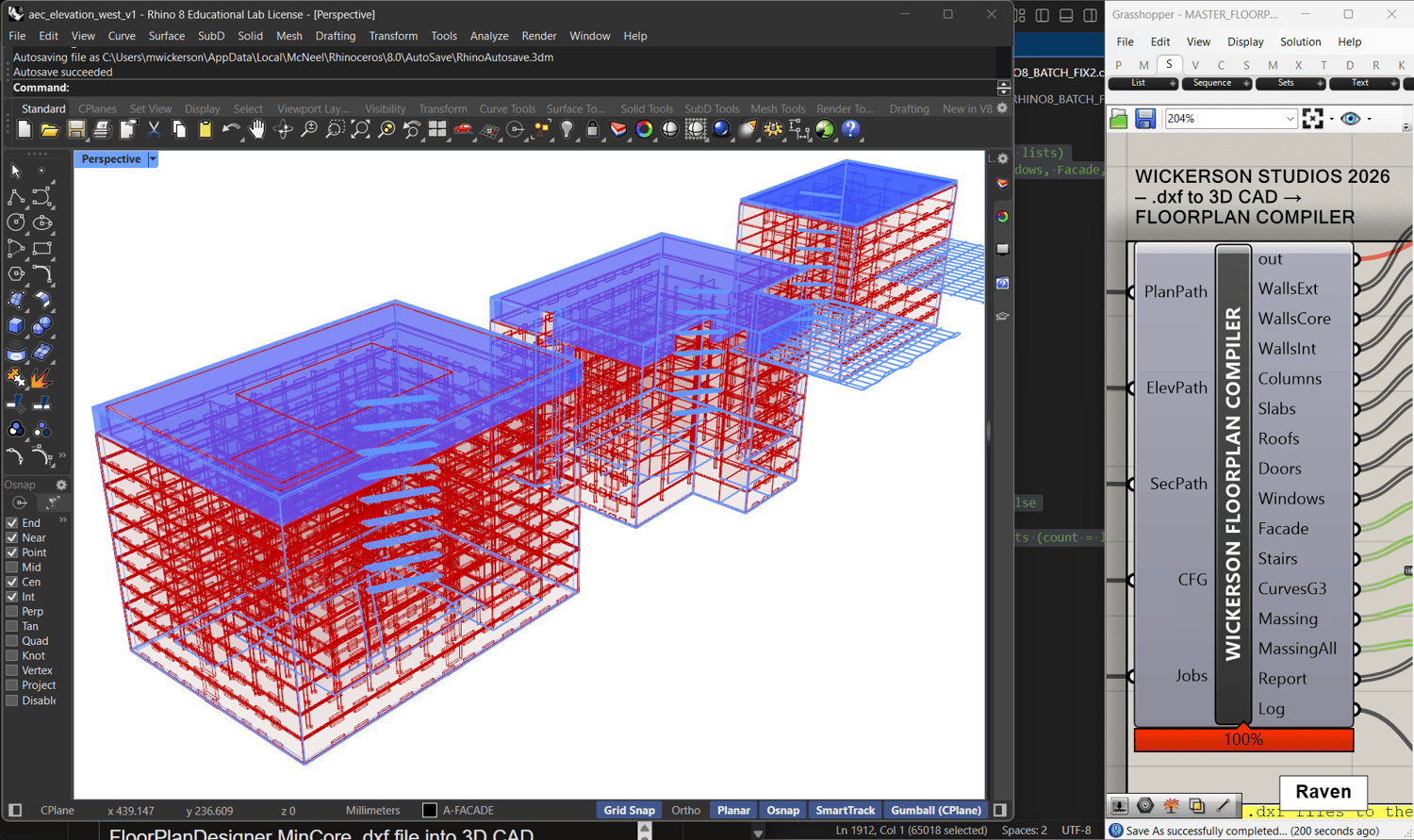

• Automatic multi-storey generation
• Instantly propagates systems across any number of levels.
• Full building systems output
• Exterior, core, and interior walls
• Columns
• Doors & windows (with sill/head logic)
• Stairs
• Floor slabs and roof slabs
• Facade massing

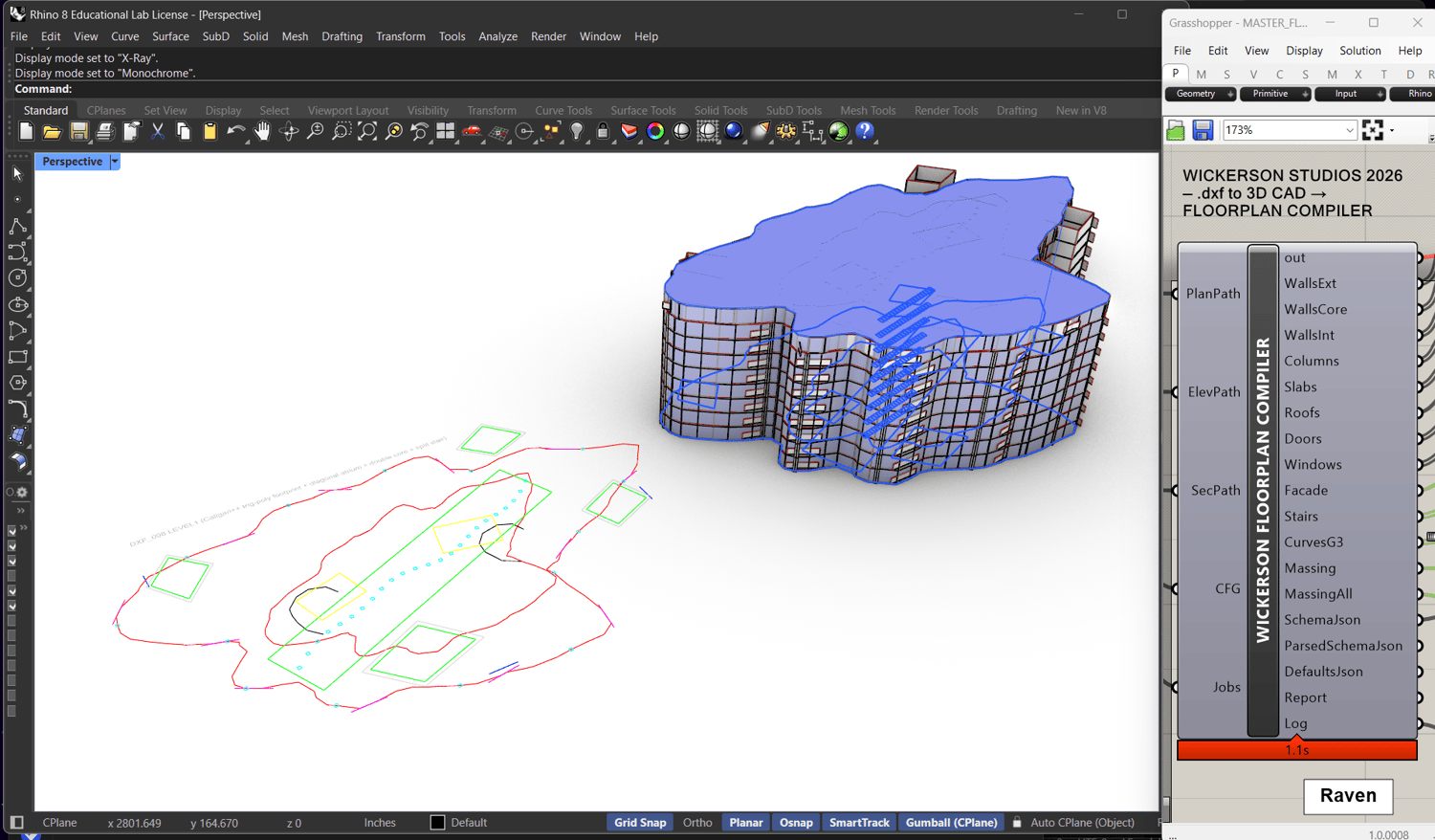

• Optional single watertight building mass

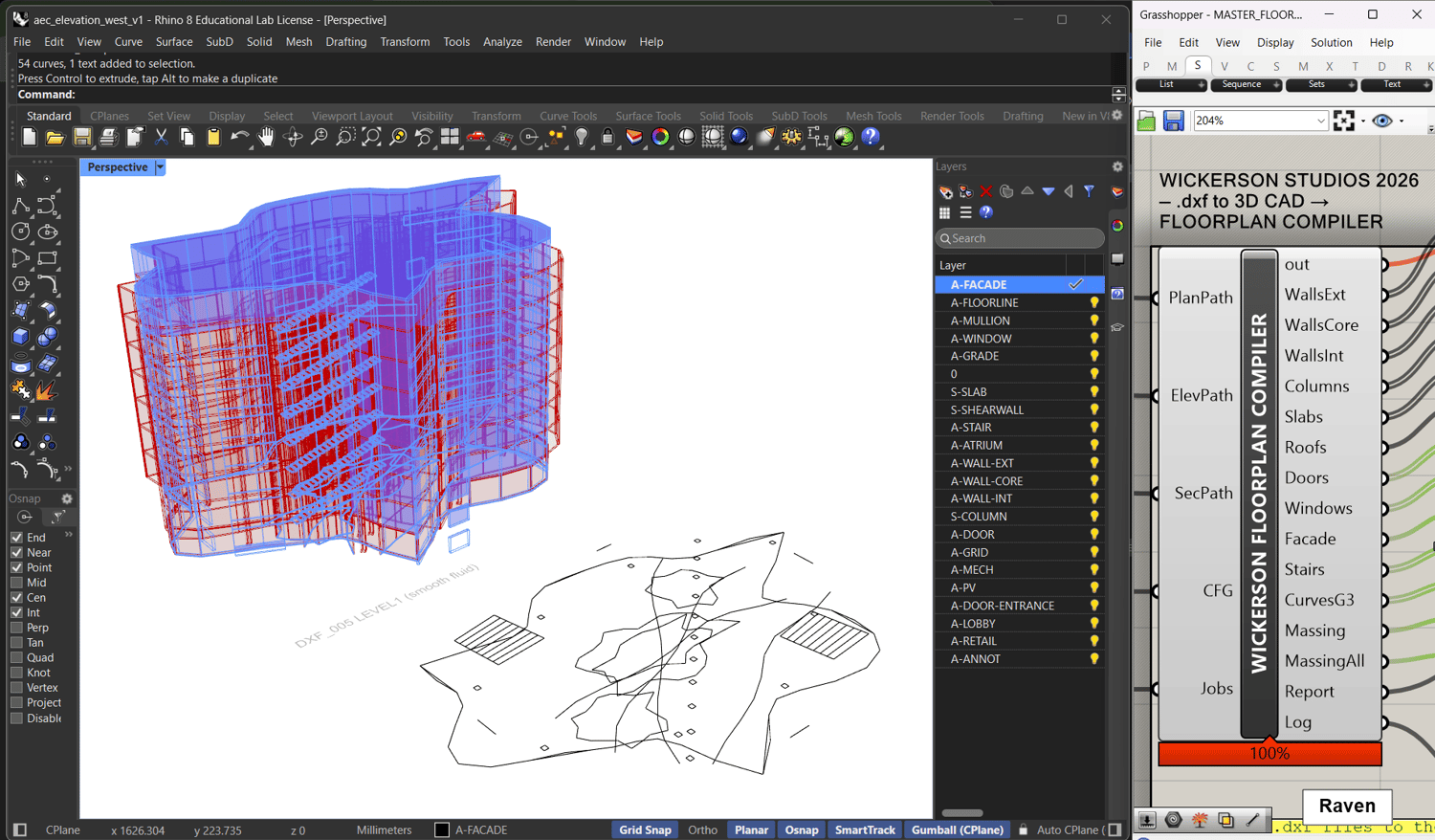

• Multi-elevation support
• Reads and merges multiple elevation drawings to inform vertical logic.

Built for Imperfect Drawings

A major reason the codebase is this large is intentional robustness.

FloorPlan Compiler includes layered fallback strategies to deal with:

• fragmented or slightly open curves
• inconsistent DXF layer usage
• tiny Z-offsets in “2D” drawings
• tolerance mismatches
• offset and capping failures

Instead of failing silently, it recovers, rebuilds, and continues.

This is why it works on actual consultant DXFs, not just clean academic examples.

Fully Config-Driven

All behavior lives outside the code in a human-readable configuration file:

• storey count and level heights
• wall, slab, and facade thicknesses
• build toggles (walls, slabs, roof, facade, etc.)
• archetype mappings
• tolerances
• union strategies

The C# stays stable.

The design intent stays flexible.

Output Philosophy

Depending on your workflow, FloorPlan Compiler can output:

• Discrete system geometry (walls, slabs, facade, roof, etc.), or
• A single watertight “Massing” brep suitable for export, analysis, or visualization

You decide how far downstream the model goes.

Why It Exists

FloorPlan Compiler was built to bridge a real gap:

The gap between messy CAD drawings and usable 3D geometry.

It is designed for:

• early-stage architectural design
• feasibility and massing studies
• computational design pipelines
• research and automation
• projects where BIM is too slow, but sketches aren’t enough

Built by Wickerson Studios

Developed and maintained by Wickerson Studios, FloorPlan Compiler reflects a broader philosophy:

Treat drawings as data.

Treat design as a system.

Build tools that survive reality.
