LSAM_FACADE_MASTER

Robotic Brick & Continuous Bead Architecture System

A Complete Grasshopper Pipeline for Large-Scale Additive Manufacturing

Developed by Wickerson Studios

**This is not a script.

This is a fabrication system.**

LSAM_FACADE_MASTER is a 10-step master algorithmic pipeline for architects, designers, educators, and robotic fabrication labs working at the intersection of architecture, structure, physics, and robotics.

Built entirely inside Grasshopper + RhinoCommon, this system takes you from parametric façade logic all the way to validated robot code, structural reinforcement, and fabrication QA documentation — without external solvers, black boxes, or gimmicks.

If you are working with LSAM (Large-Scale Additive Manufacturing), robotic extrusion, or advanced architectural massing at full scale, this system was built for you.

🔧 What This System Does

LSAM_FACADE_MASTER implements a true end-to-end robotic fabrication workflow:

• Architectural logic
• Continuous extrusion geometry
• Process physics
• Thermal behavior
• Collision & reach safety
• Robot code export
• Structural reinforcement
• Fabrication drawings & QA
• Performance optimization
• Professional packaging & distribution

Every step is explicit, editable, and inspectable.

No hidden nodes.

No locked components.

No “trust the magic” abstractions.

🧠 The 10-Step Master Pipeline

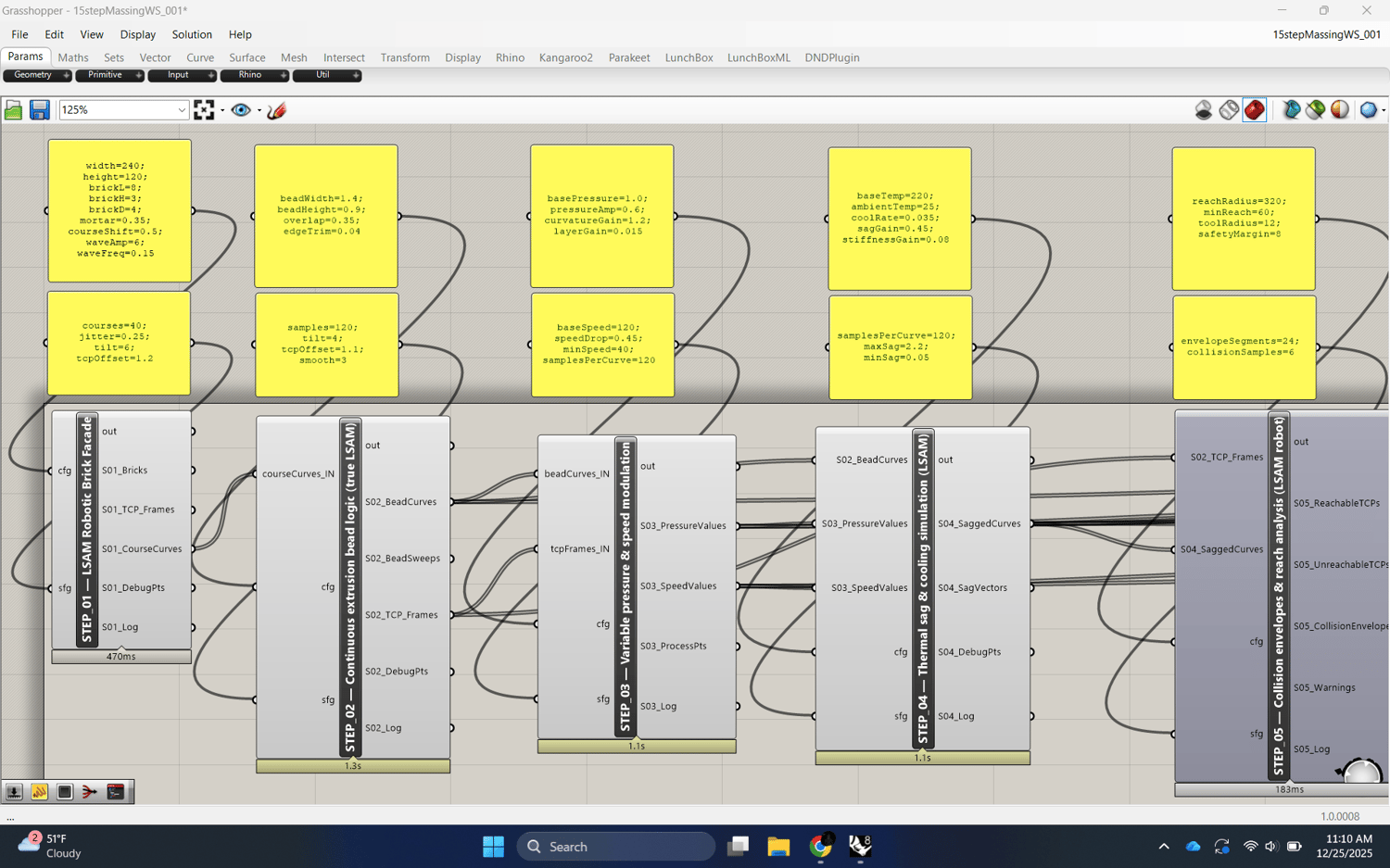

STEP_01 — Robotic Facade Logic

Parametric brick and bead façade generation designed for robotic deposition, not visualization.

Architecture emerges from fabrication constraints.

STEP_02 — Continuous LSAM Extrusion Paths

True continuous bead logic (not discrete blocks).

Paths are sweep-ready, robot-ready, and fabrication-correct.

STEP_03 — Variable Pressure & Speed Modulation

Extrusion pressure and robot speed adapt dynamically to:

• curvature
• height
• process intensity

This is how real LSAM systems behave.

STEP_04 — Thermal Sag & Cooling Simulation

Gravity, temperature decay, and material stiffness are simulated directly in geometry.

What you see is closer to what gets printed.

STEP_05 — Collision Envelopes & Reach Analysis

Robot-safe verification:

• reach limits
• tool envelopes
• safety margins
• No blind exports. No crashes on the shop floor.

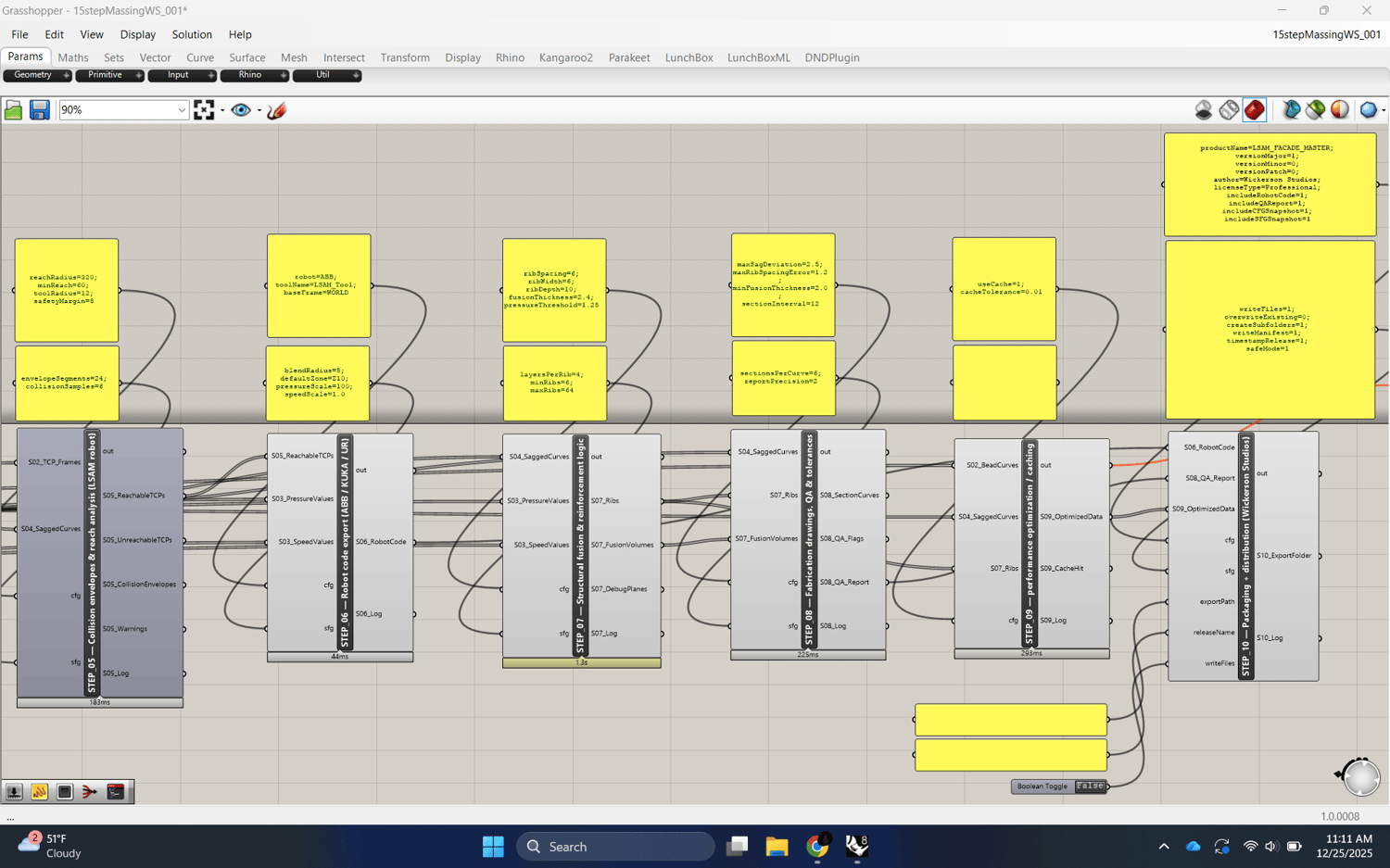

STEP_06 — Robot Code Export

Direct export of executable code for:

• ABB (RAPID)
• KUKA (KRL)
• Universal Robots (URScript)

Pressure and speed are embedded per motion.

STEP_07 — Structural Fusion & Reinforcement

Structure is generated from the print process itself:

• ribs
• fusion volumes
• layer stitching
• Fabrication-driven structure, not decorative structure.

STEP_08 — Fabrication Drawings & QA

Automatic:

• section cuts
• tolerance checks
• sag limits
• rib spacing validation
• Outputs are ready for consultants, shop drawings, and sign-off.

STEP_09 — Performance Optimization & Caching

Hash-based geometry caching dramatically reduces solver time.

Designed for large models, live demos, and teaching environments.

STEP_10 — Packaging & Distribution

Professional release tooling:

• robot code
• QA reports
• manifests
• CFG/SFG snapshots
• Exactly how real Grasshopper products are shipped.

🏗 Who This Is For

LSAM_FACADE_MASTER is built for:

• Architects working at full-scale fabrication
• Robotic fabrication labs
• Universities & research institutions
• Advanced Grasshopper users
• Design-build studios
• Computational design educators
• Industrial partners exploring LSAM

This is not an introductory Grasshopper tutorial.

This is graduate-level, professional-grade computational fabrication.

⚙️ Technical Requirements

• Rhino 7 or Rhino 8
• Grasshopper
• RhinoCommon (default install)
• Optional: HAL / Robots / KUKA|prc for downstream workflows

No proprietary solvers required.

📦 What You Receive

• Complete .gh master definition
• All STEP_01–STEP_10 C# scripts
• CFG & SFG preset libraries
• Robot export examples
• QA reporting tools
• Documentation & onboarding files
• Commercial-ready packaging structure

Everything is editable, teachable, and extensible.

🔐 Licensing

You may:

• Use this system in professional practice
• Use it in teaching and research
• Fabricate real projects
• Modify internally

You may not:

• Resell the scripts
• Redistribute the system
• Repackage as your own

🚀 Why This Matters

Most “parametric fabrication” scripts stop at geometry.

LSAM_FACADE_MASTER goes all the way:

from design → physics → robotics → structure → QA → delivery.

This is how real architectural fabrication systems are built.

LSAM_FACADE_MASTER

Fabrication-first architecture.

Robotics without illusion.

Computation with consequences.

Available now at

www.wickersonstudios.com
