║ THE MOST POPULAR AND RICH SERIES OF GRASSHOPPER SCRIPTS ║

║ ║

║ Vol. 4 — The Landscape Machine ║

║ Three Site Typologies · Pure Landscape + Civil Engineering ║

║ ║

║ NURBS Terrain · RevSurface Trees · Swept Paths · Water Features ║

║ 3 Inputs · 11 Analysis Outputs · 40 Material Layers · 1,871 Lines ║

║ ║

╚══════════════════════════════════════════════════════════════════════════════════╝

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

INSTALLATION

1. Open Rhino → launch Grasshopper

2. Params → Special → C# Script component onto canvas

3. Double-click → Select All → paste .cs file → OK

4. Add exactly 3 inputs and 11 outputs (see Socket Table)

5. Runs immediately with nothing wired

SOCKET TABLE — 3 INPUTS · 11 OUTPUTS

INPUTS

┌──────────┬──────────┬───────────────────────────────────────────────────────┐

│ CFG │ Text │ Key=value overrides — wire a Panel │

│ Bake │ Boolean │ Toggle — flip TRUE to bake to Rhino │

│ SiteType │ Integer │ 0=Suburban 1=Rooftop 2=Rural Homestead │

│ │ │ Wire a Number Slider (integer, range 0-2) │

└──────────┴──────────┴───────────────────────────────────────────────────────┘

OUTPUTS — wire each to a Panel

┌──────────────────────┬──────────┬──────────────────────────────────────────┐

│ Geometry │ DataTree │ 40-branch geometry tree │

│ SiteReport │ Text │ Dimensions, soil, climate, character │

│ PlantingPlan │ Text │ Zone list, species, quantities │

│ StormwaterAnalysis │ Text │ Runoff calcs, detention, volumes │

│ WaterBudget │ Text │ Monthly demand vs capture balance │

│ SunStudy │ Text │ Hours of direct sun per zone per season │

│ SoilAmendment │ Text │ Amendment rates, volumes, costs per zone │

│ MaintenanceSchedule │ Text │ Labour hours per month + annual cost │

│ IrrigationSpec │ Text │ Zone GPH, pipe sizing, controller │

│ CostEstimate │ Text │ Line-item landscape construction cost │

│ ConstructionSchedule │ Text │ Phased installation timeline │

└──────────────────────┴──────────┴──────────────────────────────────────────┘

THREE SITE TYPOLOGIES

SiteType = 0 — SUBURBAN BACKYARD (60 x 120 ft, 0.25 acre)

─────────────────────────────────────────────────────────────────────────────

NURBS graded terrain surface. Cedar privacy fence (6 ft) + gate. Limestone

patio (pavers with joint detail at LOD 3). Cedar deck with board detail +

rim joist framing. Cedar pergola with post-and-beam structure. Inground

swimming pool with coping, water surface, and shell geometry. Border planting

beds (east, west, rear) with corten edging. RevSurface deciduous shade trees

(Bur Oak + Chinkapin Oak) and ornamental magnolia. Shrub masses. Perennial

drifts. Ornamental grasses. Rain garden (bioswale). Garden shed with gable

roof. Compost + raised vegetable beds. Swept stepping stone path. Garden

lighting (path lights + uplights). Drip irrigation main line + laterals.

Patio furniture (LOD 4).

SiteType = 1 — URBAN ROOFTOP GARDEN (80 x 60 ft, 6-story)

Flat terrain at 62 ft elevation. Parapet on all 4 sides. Waterproof membrane

+ growing medium layer. Composite deck pavers with pedestal grid. Fibreglass

container planters (perimeter + island, varying heights). Sedum mat (extensive

green roof, east zone). RevSurface ornamental trees in large containers

(Dogwood + Cherry). Ornamental grasses + perennials in planters. Steel pergola

with shade structure. Polycarbonate wind screen (central). Small recirculating

water feature. Drip irrigation (pressure-regulated). Path lighting + uplights.

Outdoor dining furniture (LOD 4).

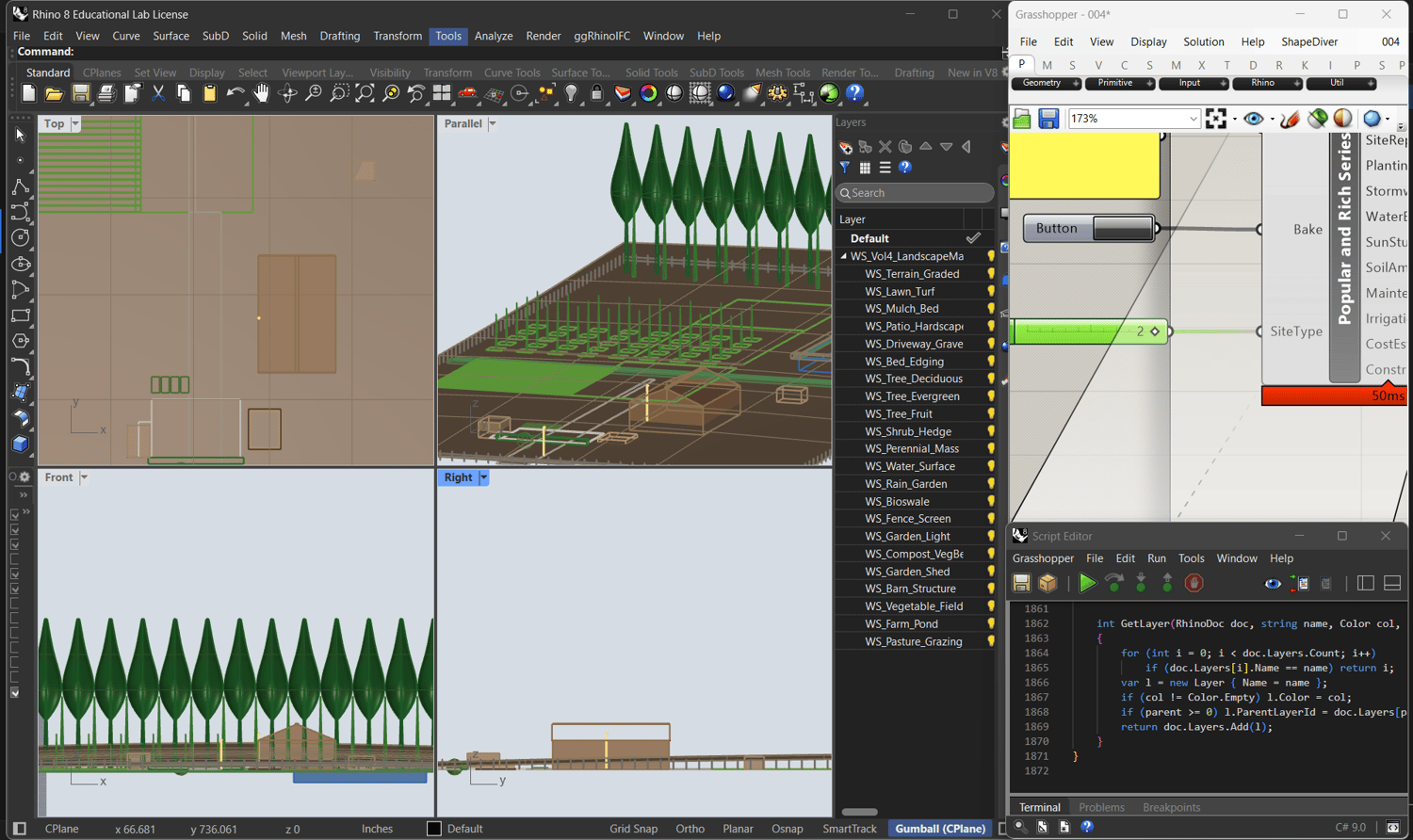

SiteType = 2 — RURAL HOMESTEAD (330 x 660 ft = 5 acres)

NURBS graded terrain over 5 acres. Perimeter post-and-rail fence. Gravel

driveway with culvert. Timber barn (48 x 72 ft, gable roof). Chicken coop.

Tool shed. RevSurface fruit tree orchard (5 rows x 8 trees = 40 trees, 20 ft

spacing). Vegetable field with row furrows (LOD 3). Farm pond (80 x 120 ft,

8 ft deep with berm, water surface, native wetland edge planting). Pasture

paddocks (3 rotational zones). Native windbreak (double row evergreen + hardwood).

Bioswale (E-W across site). Cut flower garden + herb spiral + kitchen garden

raised beds. Site lighting (pole lights at barn and entry). Drip irrigation.

GEOMETRY METHODS

BuildTerrain() NURBS surface from 8x12 control point grid with slope

and gentle undulation applied per site type

GrowTree() RevSurface trunk (tapered profile) + RevSurface canopy

(oblate for deciduous, conical for evergreen, oblate for fruit)

with Y-scale to flatten canopy for deciduous species

ShrubMass() RevSurface dome scaled by width/depth ratio

SweptPath() Interpolated curve swept with rectangular cross-section

(1.5 ft wide x 0.15 ft deep stepping stone path)

FenceRun() Post-and-rail geometry from any two XY endpoint pairs

CFG PARAMETER REFERENCE

lod=1..5 Detail level [default 3]

siteType=0..2 Overrides slider if wired [default 0]

siteW=60 Site width E-W ft [auto by type]

siteD=120 Site depth N-S ft [auto by type]

gradeSlope=0.02 Site slope (rise/run) [default 2%]

patioW=20 Patio width ft [default 20]

patioD=16 Patio depth ft [default 16]

poolW=12 Pool width ft [default 12]

poolD=24 Pool depth ft [default 24]

deckH=1.0 Deck height ft [default 1.0]

fenceH=6.0 Fence height ft [default 6.0]

rainfallIn=35 Annual rainfall inches [default 35 KC]

soilType=0 0=clay 1=loam 2=sandy loam [default 0]

irrigation=1 0=none 1=drip 2=spray [default 1]

rainwaterTank=0 Cistern capacity gallons [default 0]

QUICK EXAMPLES

"lod=4"

"siteType=0;patioW=24;poolW=15;poolD=30" larger pool + patio

"siteType=1;siteW=100;siteD=70" bigger rooftop

"siteType=2;siteW=440;siteD=880;lod=4" 10-acre homestead

"soilType=1;irrigation=2;rainwaterTank=1500" loam, spray, cistern

40 MATERIAL LAYERS

0 Terrain NURBS 1 Lawn 2 Native Meadow 3 Mulch Bed

4 Bare Soil 5 Patio 6 Path 7 Driveway

8 Timber Deck 9 Bed Edging 10 Tree Deciduous 11 Tree Evergreen

12 Tree Fruit 13 Shrub/Hedge 14 Perennial Mass 15 Ornamental Grass

16 Groundcover 17 Climber/Vine 18 Trellis/Pergola 19 Pond Shell

20 Water Surface 21 Rain Garden 22 Bioswale 23 Cistern

24 Fence/Screen 25 Gate/Arbour 26 Garden Light 27 Irrigation Pipe

28 Compost/Veg Bed 29 Garden Shed 30 Seating/Bench 31 Container Planter

32 Roof Membrane 33 Parapet 34 Wind Screen 35 Barn Structure

36 Orchard Grid 37 Vegetable Field 38 Farm Pond 39 Pasture/Grazing

LICENCE & SUPPORT

Website: www.wickersonstudios.com

THE MOST POPULAR AND RICH SERIES OF GRASSHOPPER SCRIPTS · Vol. 4

Wickerson Studios · www.wickersonstudios.com

You will get the following files:

GH (50KB)
TXT (17KB)
TXT (14KB)
CS (111KB)
