INSTALLATION

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

 1. Open Rhino → launch Grasshopper

 2. Params → Special → C# Script component onto canvas

 3. Double-click → Select All → paste .cs file → OK

 4. Add exactly 3 inputs and 10 outputs (see Socket Table)

 5. Runs immediately with nothing wired

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

SOCKET TABLE — 3 INPUTS · 10 OUTPUTS

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

 INPUTS

 ┌──────────────┬──────────┬────────────────────────────────────────────────┐

 │ CFG     │ Text   │ Key=value overrides — wire a Panel       │

 │ Bake     │ Boolean │ Toggle — flip TRUE to bake to Rhino      │

 │ BuildingType │ Integer │ 0=1920s Brick 1=1960s Strip 2=2024 Mixed-Use │

 │       │     │ Wire a Number Slider (integer, range 0-2)   │

 └──────────────┴──────────┴────────────────────────────────────────────────┘

 OUTPUTS — wire each to a Panel

 ┌──────────────────────┬──────────┬──────────────────────────────────────────┐

 │ Geometry       │ DataTree │ 36-branch geometry tree         │

 │ PropertyReport    │ Text   │ Site, parcel, zoning, character     │

 │ ZoningAnalysis    │ Text   │ FAR, lot coverage, parking, use table  │

 │ EnergyAnalysis    │ Text   │ ASHRAE 90.1 envelope, EUI, HVAC     │

 │ CostEstimate     │ Text   │ Line-item construction + land estimate  │

 │ PermitData      │ Text   │ KCMO permits + IBC occupancy + ADA    │

 │ StructuralAnalysis  │ Text   │ ASCE 7-22 loads + seismic + foundation  │

 │ TenantProForma    │ Text   │ NNN lease, NOI, cap rate, payback    │

 │ SustainabilityScore │ Text   │ LEED v4.1, Energy Star, stormwater    │

 │ ConstructionSchedule │ Text   │ 8-phase schedule + GC selection criteria │

 └──────────────────────┴──────────┴──────────────────────────────────────────┘

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

THREE BUILDING DESIGNS

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

 BuildingType = 0 — 1920s BRICK COMMERCIAL (39th Street / Westport vernacular)

 ─────────────────────────────────────────────────────────────────────────────

 2-story flat roof. Face brick with corbelled cornice projecting 6 in. proud

 of wall face. Terra cotta tile signage band. 5 pilasters with base, shaft,

 and capital. Recessed central entry with iron marquee canopy + hanging sign.

 Segmental brick arches over upper windows. 4 storefront bays with glazing,

 transom lights, and frame mullions. Interior floor slabs. Flat roof with

 two HVAC units, roof curbs, and ladder. ADA ramp + bollards. Utility meters.

 Dumpster enclosure.

 BuildingType = 1 — 1960s STRIP MALL (State Avenue / suburban commercial)

 ─────────────────────────────────────────────────────────────────────────────

 Single-story concrete block. Projecting fascia canopy (8 ft) on steel pipe

 columns — the defining element. Wide storefront bays with metal awnings over

 each entry. Bold signage fascia band. Multiple tenant bays with divided

 storefront. Rooftop HVAC row. Flat roof. ADA ramp. Fabric awnings. Utilities.

 BuildingType = 2 — 2024 MIXED-USE (Main Street / new urbanist)

 ─────────────────────────────────────────────────────────────────────────────

 4-story. Ground floor retail with full-height curtain wall, 6-bay grid with

 spandrel panels and vision glass per floor. Board-formed concrete side walls.

 Upper 3 floors: residential with balconies (glass railings) per floor.

 Outdoor patio with 5 planters at grade. Trellis screens. Green roof (60%

 coverage) with rooftop amenity zone. Rooftop HVAC. Exterior fire stair.

 EV charging stalls. Bike shelter with racks. LOD4: board-and-batten battens.

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

CFG PARAMETER REFERENCE

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

 lod=1..5     Detail level            [default 3]

 buildingType=0..2 Overrides slider if wired     [default 0]

 frontage=60    Street frontage E-W ft       [default 60]

 depth=80     Building depth N-S ft       [default 80]

 flr1H=14     Ground floor plate height ft    [default 14]

 flr2H=11     Upper floor plate height ft    [default 11]

 numFloors=2    Total floors including ground   [default 2]

 wallT=0.83    Exterior wall thickness ft     [default 0.83]

 parcelW=66    Full parcel width ft        [default 66]

 parkingLen=180  Parking lot depth ft        [default 180]

 parkingW=60    Parking lot width ft        [default 60]

 stalls=18     Number of parking stalls      [default 18]

 canopyD=8     Canopy projection ft        [default 8]

 storefrontH=10  Storefront glazing height ft    [default 10]

 signH=3      Signage band height ft       [default 3]

 parapetH=3    Parapet above roof ft       [default 3]

 hvacH=4      Rooftop HVAC unit height ft    [default 4]

 QUICK EXAMPLES

 "lod=4"

 "buildingType=2;numFloors=5;flr2H=10"  5-story mixed-use

 "frontage=120;depth=100;stalls=36"    wider double-frontage site

 "buildingType=1;frontage=200;stalls=48"  big strip mall

 "buildingType=0;numFloors=3"       3-story 1920s block

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

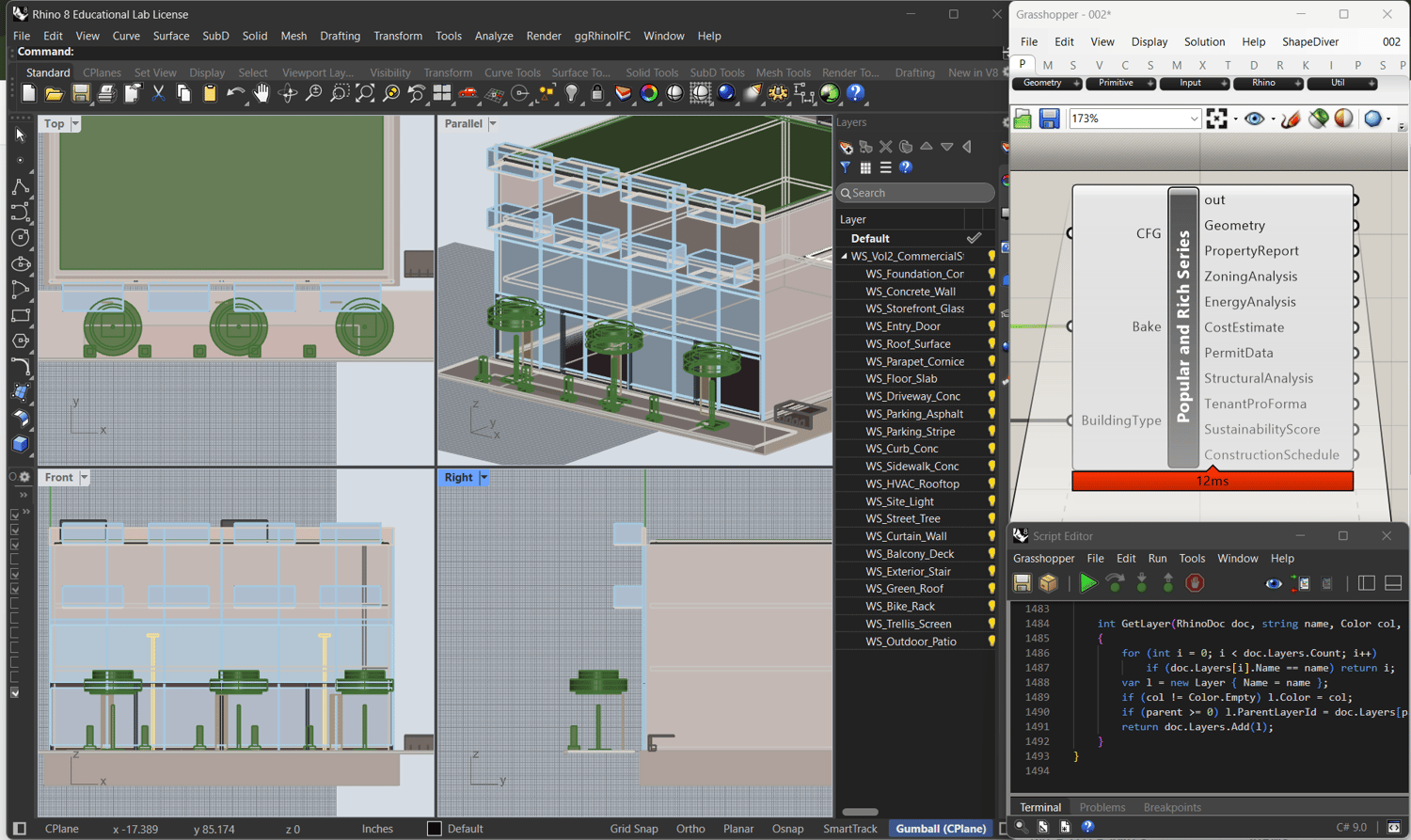

36 MATERIAL LAYERS

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

 0 WS_Foundation_Conc    1 WS_Face_Brick     2 WS_Concrete_Wall

 3 WS_Storefront_Frame   4 WS_Storefront_Glass  5 WS_Entry_Door

 6 WS_Roof_Surface     7 WS_Parapet_Cornice   8 WS_Canopy_Structure

 9 WS_Canopy_Glass     10 WS_Signage_Band    11 WS_Pilaster_Column

 12 WS_Floor_Slab      13 WS_Driveway_Conc    14 WS_Parking_Asphalt

 15 WS_Parking_Stripe    16 WS_Curb_Conc      17 WS_Sidewalk_Conc

 18 WS_HVAC_Rooftop     19 WS_Roof_Ladder     20 WS_Security_Fence

 21 WS_Site_Light      22 WS_Dumpster_Screen   23 WS_ADA_Ramp

 24 WS_ADA_Rail_Bollard   25 WS_Utility_Panel    26 WS_Street_Tree

 27 WS_Fabric_Awning    28 WS_Curtain_Wall    29 WS_Balcony_Deck

 30 WS_Exterior_Stair    31 WS_Green_Roof     32 WS_EV_Charger

 33 WS_Bike_Rack      34 WS_Trellis_Screen   35 WS_Outdoor_Patio

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
